Backrest Mounting Hardware suit Most Models List 06-up Dyna & 07-up Softail Series Sissy Bar Kits (Sold separately to backrest)

Note: Some May need the Marker lights relocation for Sissy bar to Work.

Fits Dyna Models 2006-17 & Most Some Softail 2007-17 Flst & Fxst Models

Non M8 Models.

Size:

Rear Bush - Length .905 (23mm) O.D .9445 (24mm) Hole (I.D) .395 (10.03mm or 3/8"), Mount Gap .486 (12.35mm)

Front Bush - Length Tappet Style .717 (18.21mm) O.D .928 (23.58mm) Hole .3975 (10.09mm or 3/8") Mount Gap .132 (3.35mm)

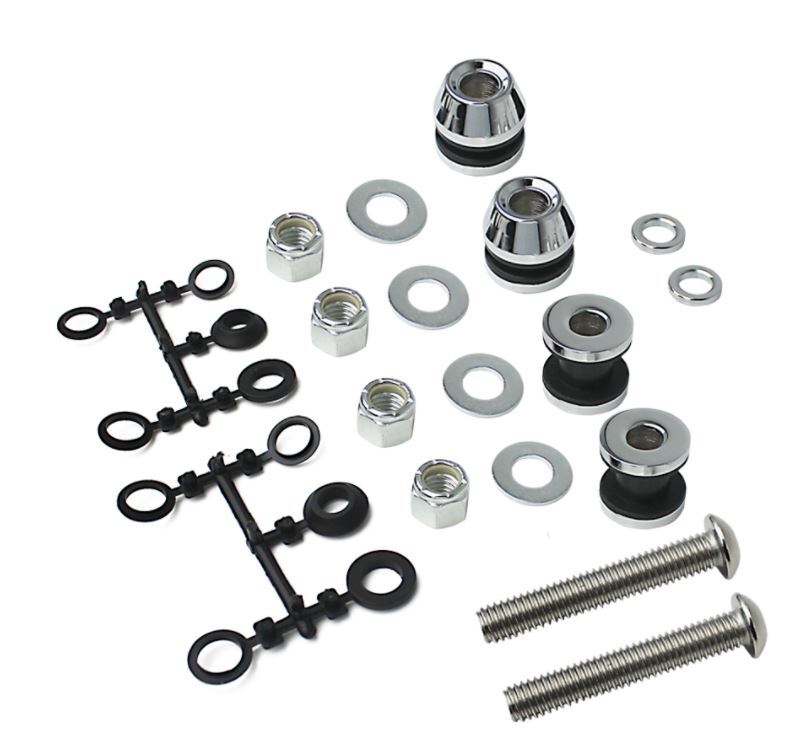

Kit inc - 4 x 3/8unc - 1.688 (43.67mm) Long Button Head Blots, 4 x 3/8 Flat Washers, 2 x Flat Washers O.D .621 (15.77mm), Thin .119 (3.02mm), 4 x 3/8 Nylon Nuts. All Chrome

Note : Some Models May need the Turn Signal Relocation Kit (W-DH-0002)
