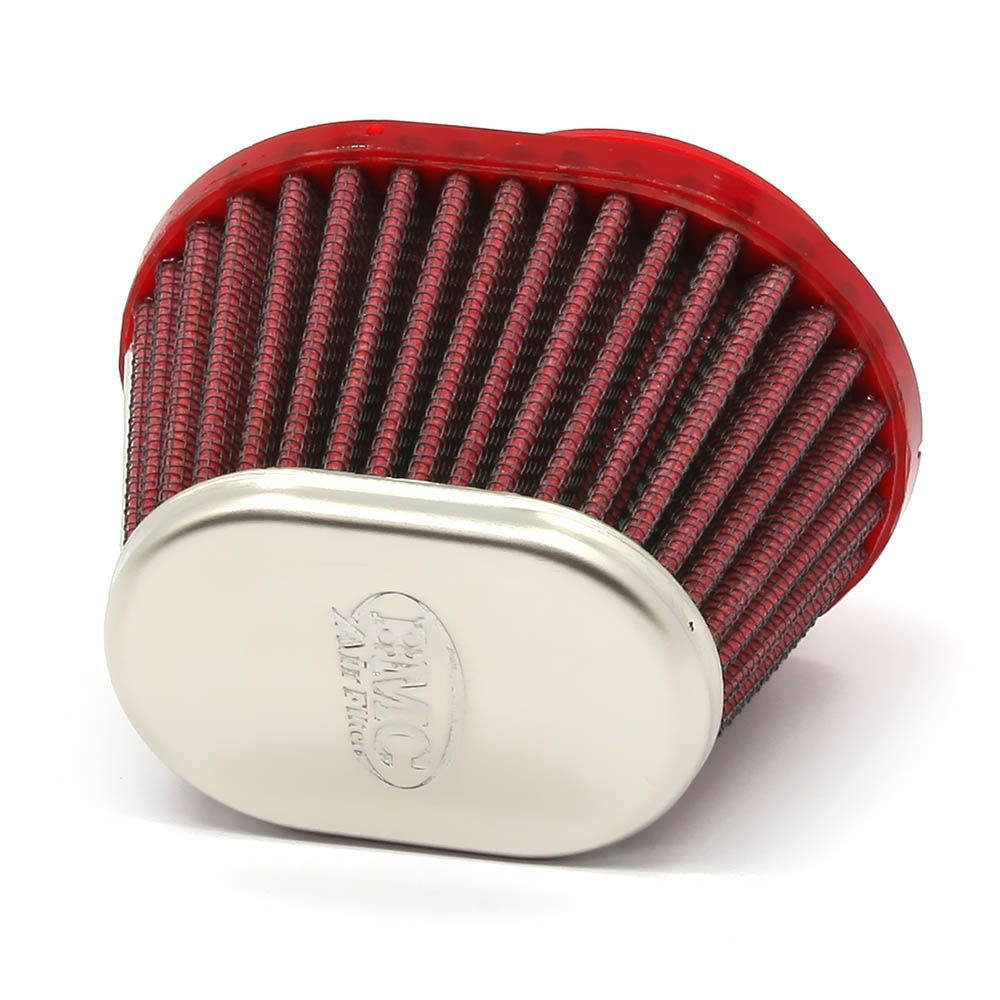

BMC FBPF50-70L Universal 50mm Left-Mount Oval Conical Pod Air Filter

BMC conical filters for direct air intake can be installed on most types of engine by removing the original airbox. BMC direct induction conical filters are manufactured using a characteristic red rubber that allows the connection of the intake to be particularly resistant to both engine stress and heat without suffering from deformations caused by the high temperature. The special filtration mesh allows the production of filters with a power up to 700 HP without presenting problems of filter deformation.

BMC conical filters are available in two versions:
SA (Single Air) with simple lateral air flow - available in carbon top, metal top and plastic top versions
TW (Twin Air) with central and lateral air flow - available in metal top and plastic top versions.

Technical features

Single Filters
Flanges: 1
Flange Length (mm): 18
Flange Inside Diameter Ø1 (mm): 50
Height - H2 (mm): 89
Height - H1 (mm): 71
Base Outside Length A (mm): 102
Base Outside Width B (mm): 75
Offset Lenght (mm): 9.5
Offset Width C (mm): 4 to the Left
Top material - Finish: Metal
Filter Material: Oiled Cotton Gauze
Flange Type: Offset
Top style: Oval and Straight
Washable: Yes
