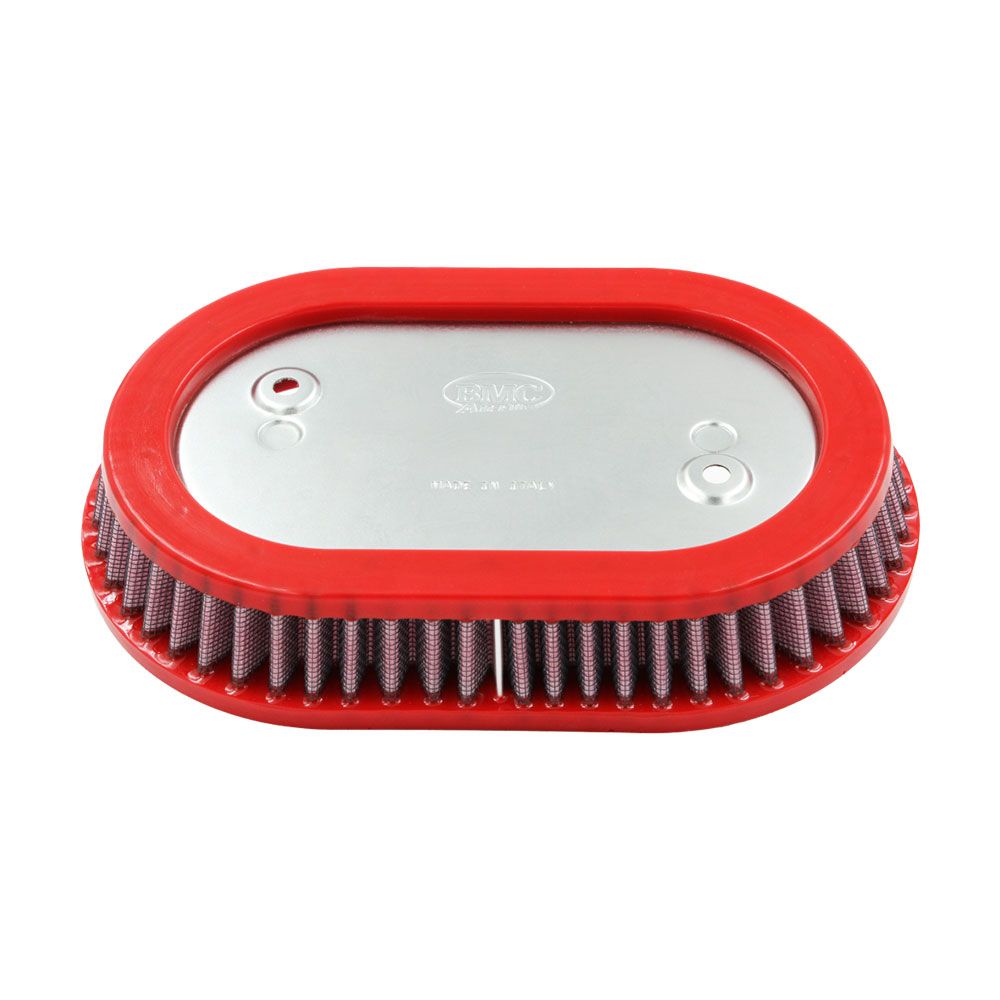

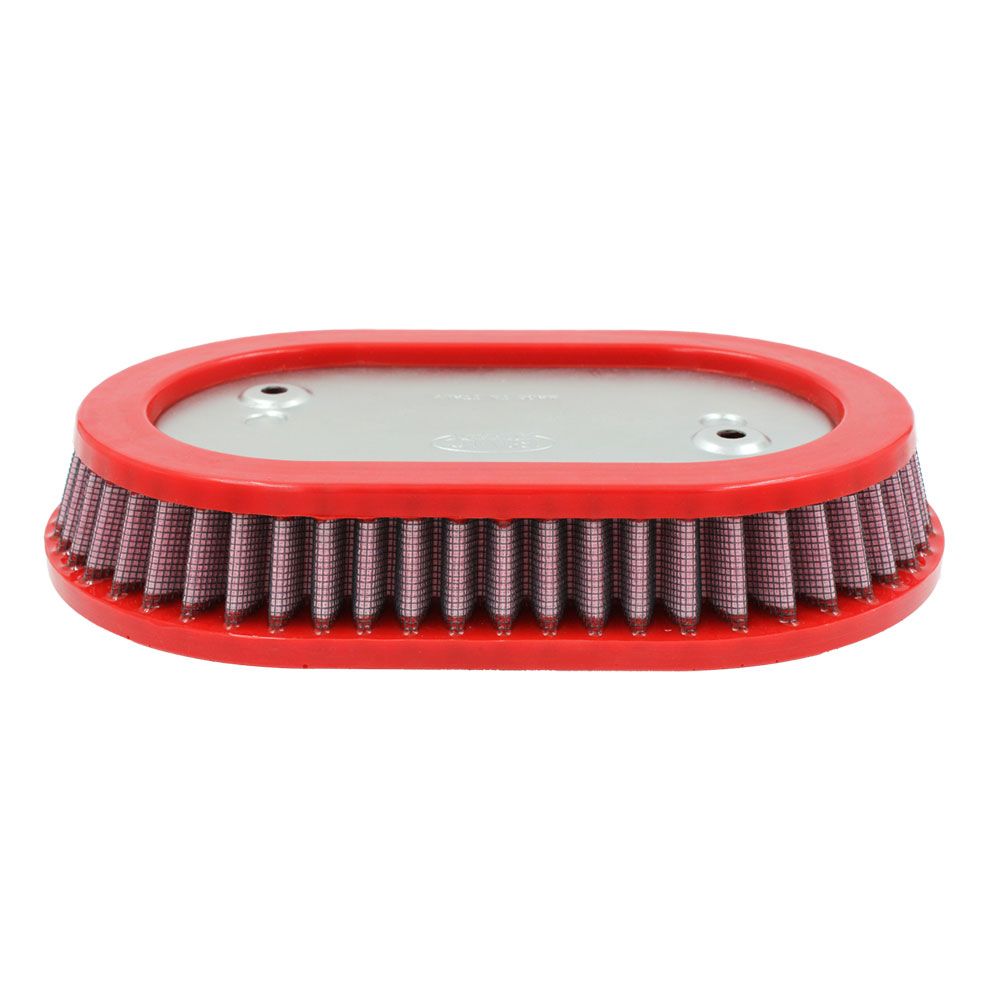

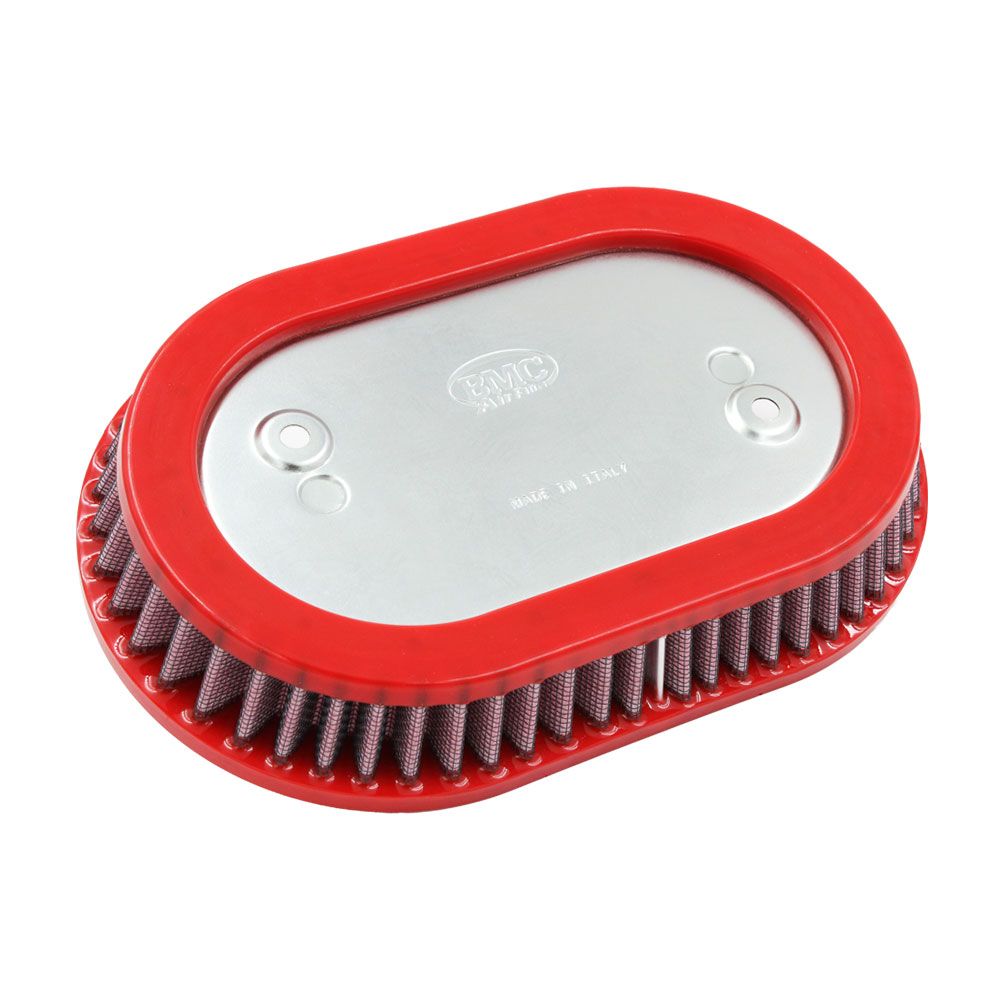

BMC FM01132 Standard Air Filter for Harley-Davidson

The panel air filter is commonly referred to as "replacement air filter". It is installed in the vehicle's original airbox to replace the OEM air filter. It is made of highly performing materials that allow an increased air flow combined with a more efficient filtration, guaranteeing containment of all impurities from as small as 7 microns (compared to OEM's 10 microns).

BMC air filters are produced using a "Full Moulding" system that enables the characteristic red filter to be realized from a single mould with no welded joints thus avoiding easy breakage. The rubber used in BMC air filtering systems has a long life, is very durable and has optimum adhesion characteristics to all shapes of airboxes.

BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from petrol fumes and oxidization due to air humidity.

All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.

Technical features

V-TWIN
Outside Width/Base Outside Diameter (mm): 155
Outside Length/Base Inner Diameter (mm): 236
Height (mm): 41
Filter Material: Oiled Cotton Gauze
Washable: Yes

Fitment
HARLEY-DAVIDSON
SOFTAIL 1745 / Softail / Street Bob / Slim / Low Rider / Deluxe / Heritage Classic (with Screamin' Eagle Stage 1 Kit) 2018 > 2020
SOFTAIL 1868 / Fat Boy / Heritage Classic / Breakout / Fat Bob / Low Rider S / Low Rider ST 2018 > 2024
TOURING 1745 / Road King / Electra Glide Ultra Limited / Ultra Limited Low / Street Glide / Road Glide (with Screamin' Eagle Stage 1 Kit) 2017 > 2020
TOURING 1868 / CVO Street Glide / CVO Road Glide / CVO Ultra Limited / CVO Road Glide Custom 2017 > 2022
