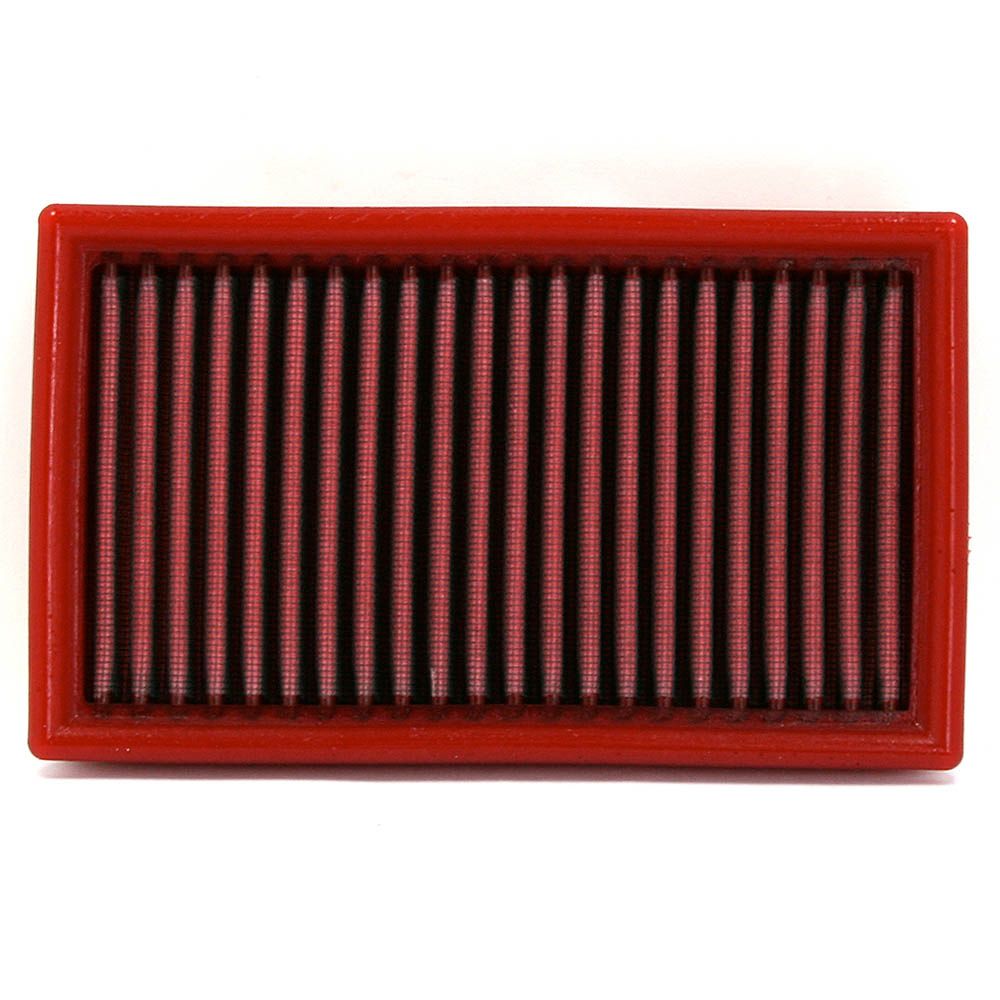

BMC FM164/01 Standard Air Filter for Cagiva/Moto Guzzi

The panel air filter is commonly referred to as "replacement air filter". It is installed in the vehicle's original airbox to replace the OEM air filter. It is made of highly performing materials that allow an increased air flow combined with a more efficient filtration, guaranteeing containment of all impurities from as small as 7 microns (compared to OEM's 10 microns).

BMC air filters are produced using a "Full Moulding" system that enables the characteristic red filter to be realized from a single mould with no welded joints thus avoiding easy breakage. The rubber used in BMC air filtering systems has a long life, is very durable and has optimum adhesion characteristics to all shapes of airboxes.

BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from petrol fumes and oxidization due to air humidity.

All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.

Technical features

Panel
Outside Width/Base Outside Diameter (mm): 134
Outside Length/Base Inner Diameter (mm): 224
Filter Material: Oiled Cotton Gauze
Washable: Yes

Fitment
CAGIVA
ELEFANT 750 AC / I.E. 1993 > 1995
ELEFANT 900 / I.E. / Lucky Explorer 1993 > 1997
GRAN CANYON 900 1998 > 1900
NAVIGATOR 1000 2000 > 2005

MOTO GUZZI
1100 SPORT 1100 / (carb.) / I.E. / Corsa 1994 > 1999
BELLAGIO 940 2007 > 2009
CALIFORNIA 1100 / EV / Touring / Jackal / Special 1994 > 1902
CALIFORNIA 1100 / Stone / Alu / Tit / Classic 2001 > 2006
CALIFORNIA 1100 / Vintage / Aquila Nera 2006 > 2012
DAYTONA 1000 / Biposto / Racing / RS 1992 > 1998
QUOTA 1000 1992 > 1997
QUOTA 1100 ES 1998 > 1902
V10 CENTAURO 1000 / GT / Sport 1997 > 1901
V11 1100 / Le Mans / Nero Corsa / Rosso Corsa / Tenni 2001 > 2006
V11 1100 / Sport / Naked / Scura / Scura R 1999 > 1906
V11 1100 / Sport Ballabio / Cafe' Sport / Coppa Italia 2003 > 2006
