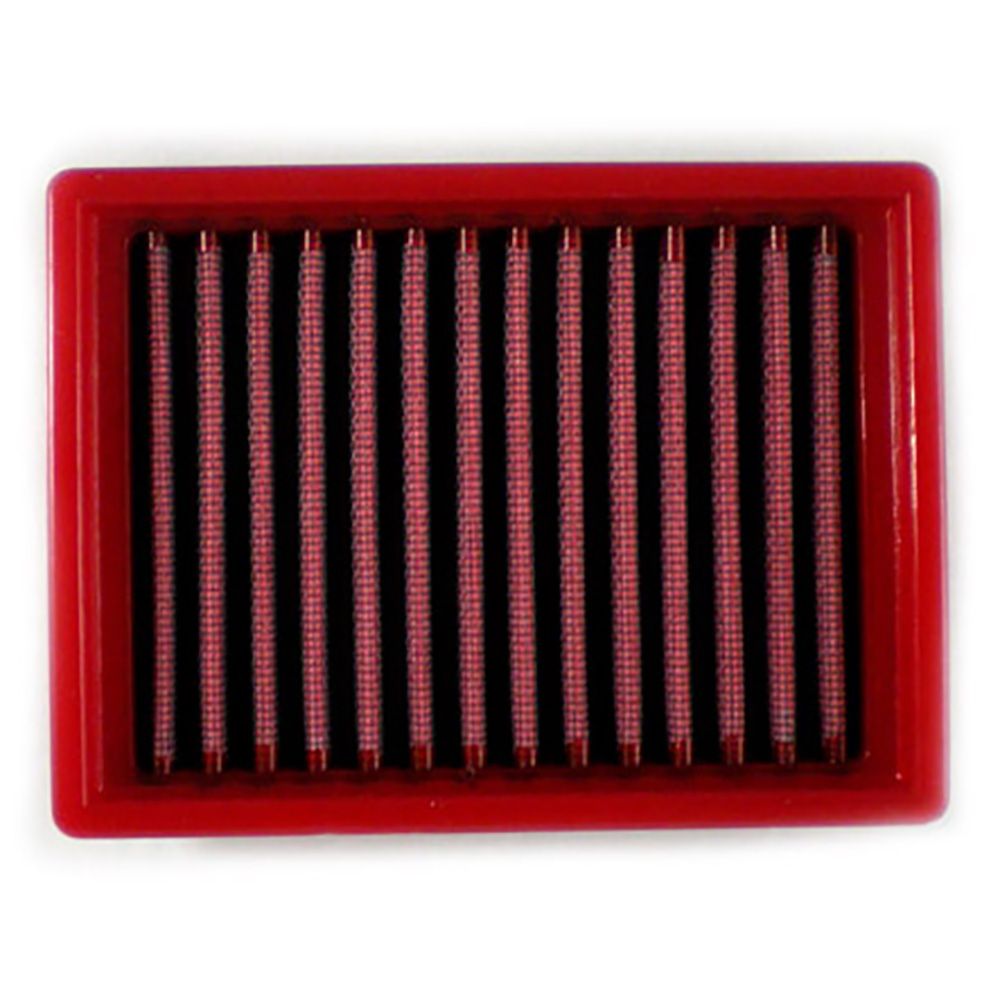

BMC FM504/20 Standard Air Filter for Moto Guzzi/Aprilia

The panel/cylindrical air filter is commonly referred to as "replacement air filter". It is installed in the vehicle's original airbox to replace the OEM air filter. It is made of highly performing materials that allow an increased air flow combined with a more efficient filtration, guaranteeing containment of all impurities from as small as 7 microns (compared to OEM's 10 microns).

BMC air filters are produced using a "Full Moulding" system that enables the characteristic red filter to be realized from a single mould with no welded joints thus avoiding easy breakage. The rubber used in BMC air filtering systems has a long life, is very durable and has optimum adhesion characteristics to all shapes of airboxes.

BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from petrol fumes and oxidization due to air humidity.

All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.

Technical features

Panel
Outside Width/Base Outside Diameter (mm): 114
Outside Length/Base Inner Diameter (mm): 153
Filter Material: Oiled Cotton Gauze
Washable: Yes

Fitment
APRILIA
AS 125 R 1985 > 1987
ATLANTIC 500 / Sprint 2001 > 2004
MANA 850 / GT 2007 > 2016
SCARABEO 500 / Light 2002 > 2006
SRV 850 / ATC / ABS 2012 > 2019
ST / STX 125 1982 > 1985

BENELLI
JARNO 125 1988 > 1994

FANTIC MOTOR
CABALLERO 700 / Scrambler / Deluxe / Travel / Explorer 2023 >

GILERA
GP 800 / Corsa 2008 > 2014

ITALJET
BOSS 350 4T 1981 > 1984
ROADMASTER 350 2T 1980 > 1984
SCOTT 350 4T 1980 > 1984

MOTO GUZZI
750 T 750 1991 > 1993
1000 S 1000 1990 > 1993
BREVA 750 2003 > 2009
CALIFORNIA II 1000 1981 > 1987
CALIFORNIA III 1000 1987 > 1993
GT 1000 1987 > 1993
LE MANS III 850 1981 > 1984
LE MANS III 1000 1983 > 1984
LE MANS IV 1000 1985 > 1989
LE MANS V 1000 / CIE 1990 > 1993
MILLE GT 1000 1987 > 1994
NEVADA 750 / Classic / Aquila Nera / S 2004 > 2011
NEVADA 750 / Club / Touring 1991 > 2003
NTX 650 1987 > 1990
NTX 750 1986 > 1990
SP 750 1990 > 1992
SP II 1000 1984 > 1988
STRADA 750 1993 > 1995
STRADA 1000 1993 > 1996
T5 850 1983 > 1989
TARGA 750 1990 > 1992
V7 750 Classic / Cafe' / Racer 2008 > 2012
V50 500 / Monza II / Custom / NATO 1986 > 1989
V65 650 / C / Florida / GT / Lario 1981 > 1992
V65 650 / PA / SP / Sport / TT 1982 > 1995
V75 750 / PA 1985 > 2002
