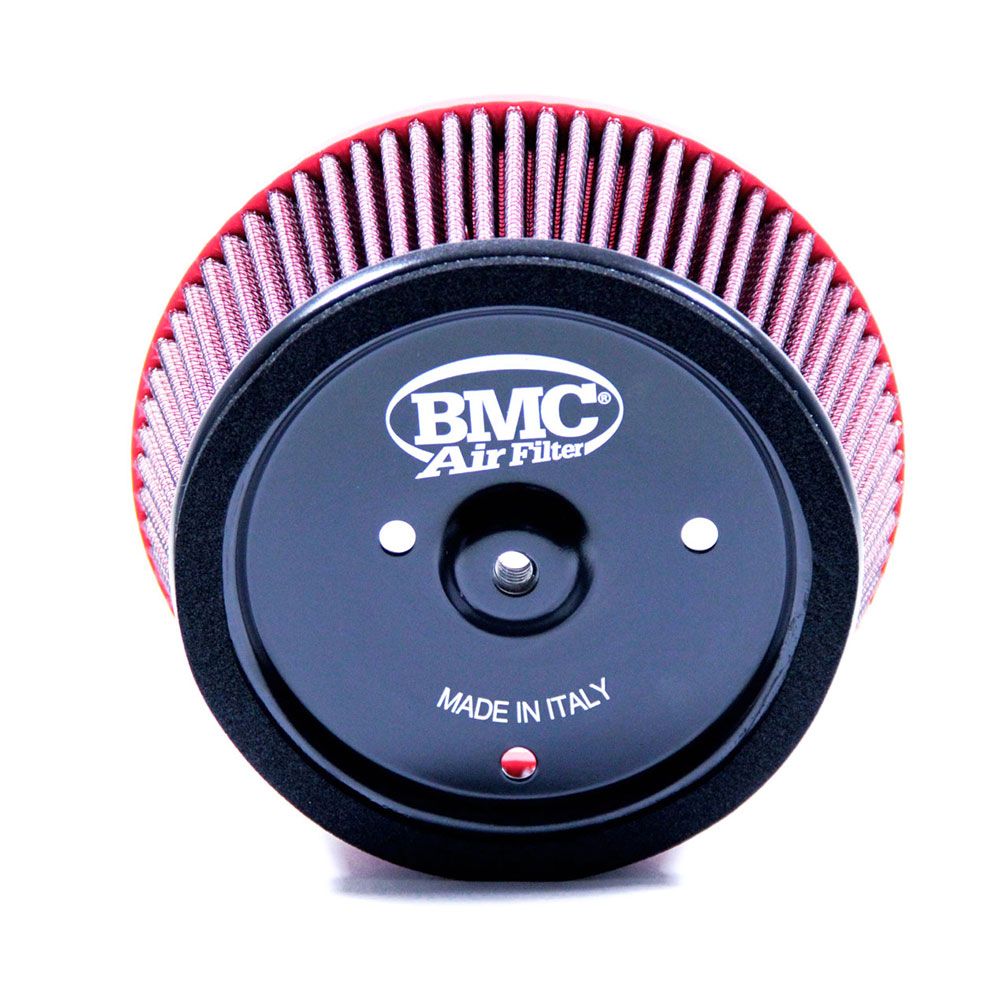

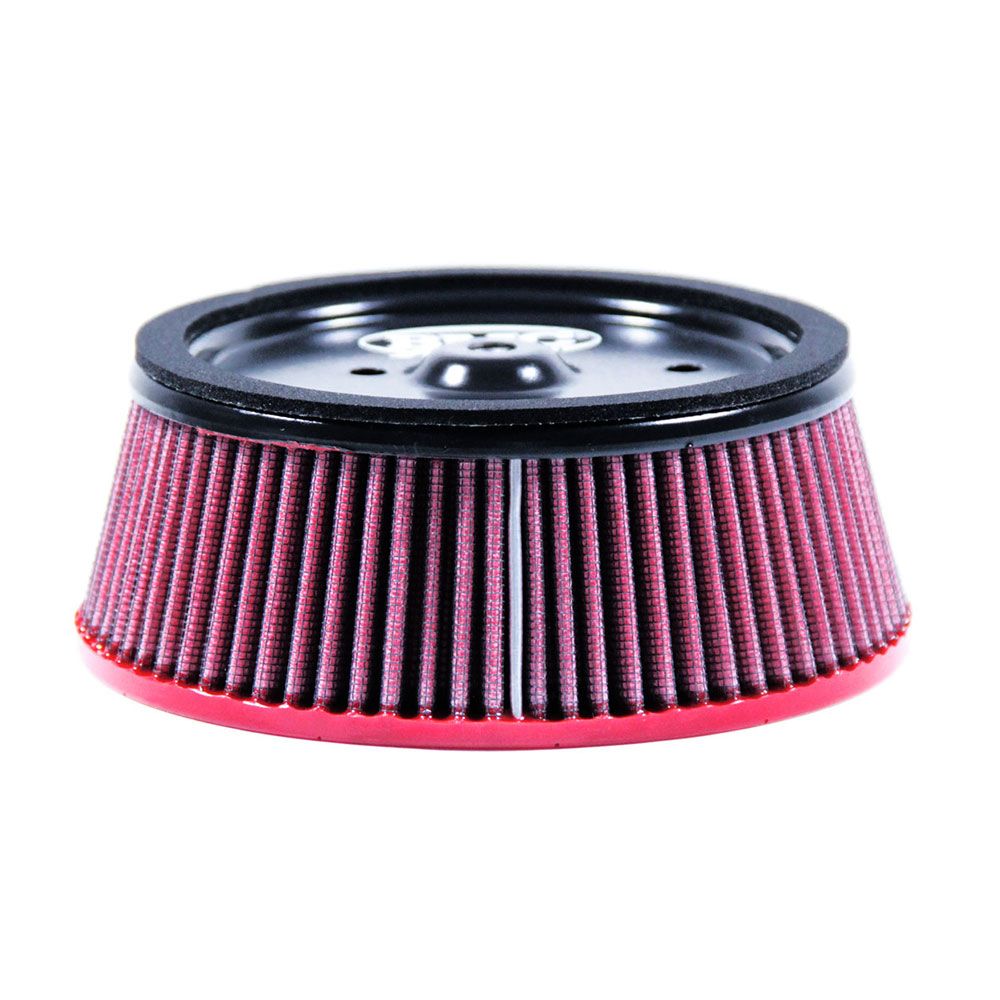

BMC FM947/04B Standard Air Filter for Harley-Davidson

The panel/cylindrical air filter is commonly referred to as "replacement air filter". It is installed in the vehicle's original airbox to replace the OEM air filter. It is made of highly performing materials that allow an increased air flow combined with a more efficient filtration, guaranteeing containment of all impurities from as small as 7 microns (compared to OEM's 10 microns).

BMC air filters are produced using a "Full Moulding" system that enables the characteristic red filter to be realized from a single mould with no welded joints thus avoiding easy breakage. The rubber used in BMC air filtering systems has a long life, is very durable and has optimum adhesion characteristics to all shapes of airboxes.

BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from petrol fumes and oxidization due to air humidity.

All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.

Technical features

V-TWIN
Outside Width/Base Outside Diameter (mm): 135.5
Outside Length/Base Inner Diameter (mm): 162
Height (mm): 60.5
Filter Material: Oiled Cotton Gauze
Washable: Yes

Fitment
HARLEY-DAVIDSON
DYNA 1450 / Super Glide / Low Rider / Super Glide Sport / Wide Glide (with Screamin' Eagle Stage 1 Kit) 1999 > 1906
DYNA 1584 / Super Glide / Low Rider / Super Glide Custom / Street Bob / Wide Glide (with Screamin' Eagle Stage 1 Kit) 2020 > 2007
DYNA 1800 / CVO Super Glide Custom / CVO Dyna 2007 > 2008
SOFTAIL 1450 / Fat Boy EFI 15th Anniversary Ed. / CVO Deuce / CVO Screamin' Eagle Fat Boy 2000 > 2005
SOFTAIL 1450 / Night Train / Springer / Fat Boy / Heritage Classic / Deluxe (with Screamin' Eagle Stage 1 Kit) 2000 > 2006
SOFTAIL 1584 / Night Train / Fat Boy / Fat Boy Lo / Heritage Classic / Deluxe (with Screamin' Eagle Stage 1 Kit) 2007 > 2015
SOFTAIL 1800 / CVO Screamin' Eagle Fat Boy / CVO Springer Softail 2006 > 2007
SPORTSTER 883 / Low / Custom / Iron / Roadster (with Screamin' Eagle Stage 1 Kit) 2007 > 2013
SPORTSTER 1200 / Custom / Low / Nightster / Forty-Eight / Seventy-Two (with Screamin' Eagle Stage 1 Kit) 2007 > 2013
TOURING 1450 / CVO Road King 1999 > 1907
TOURING 1450 / Electra Glide / Electra Glide Classic / Ultra Classic Electra Glide / Road King / Road King Classic / Road Glide (with Screamin' Eagle Stage 1 Kit) 1999 > 1906
TOURING 1584 / Electra Glide / Electra Glide Classic / Ultra Classic Electra Glide / Street Glide / Road King / Road King Classic (with Screamin' Eagle Stage 1 Kit) 2020 > 2007
TOURING 1584 / Road Glide (with Screamin' Eagle Stage 1 Kit) 2020 > 2007
