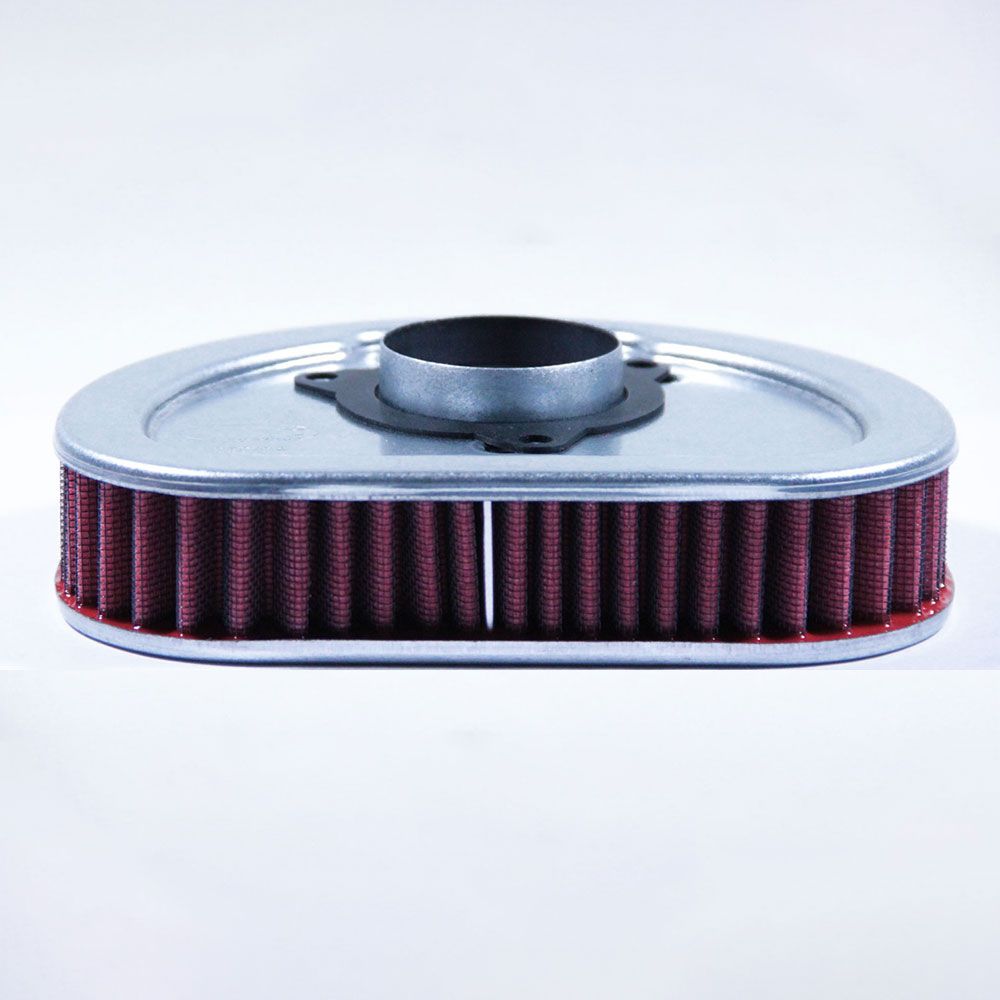

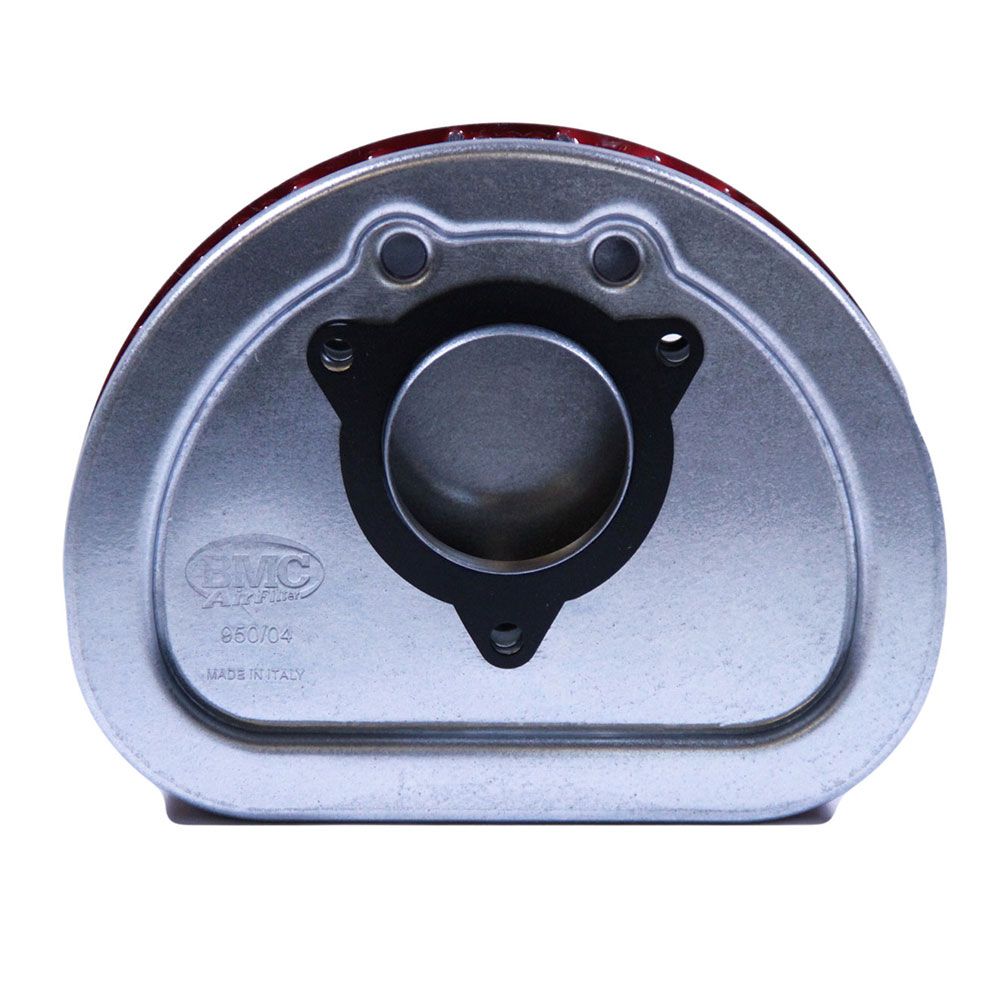

BMC FM950/04 Standard Air Filter for Harley-Davidson

The panel/cylindrical air filter is commonly referred to as "replacement air filter". It is installed in the vehicle's original airbox to replace the OEM air filter. It is made of highly performing materials that allow an increased air flow combined with a more efficient filtration, guaranteeing containment of all impurities from as small as 7 microns (compared to OEM's 10 microns).

BMC air filters are produced using a "Full Moulding" system that enables the characteristic red filter to be realized from a single mould with no welded joints thus avoiding easy breakage. The rubber used in BMC air filtering systems has a long life, is very durable and has optimum adhesion characteristics to all shapes of airboxes.

BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from petrol fumes and oxidization due to air humidity.

All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.

Technical features

V-TWIN
Outside Width/Base Outside Diameter (mm): 149
Outside Length/Base Inner Diameter (mm): 191
Height (mm): 51
Filter Material: Oiled Cotton Gauze
Washable: Yes

Fitment
HARLEY-DAVIDSON
DYNA 1584 / Low Rider / Street Bob / Super Glide Custom / Wide Glide 2020 > 2013
DYNA 1690 / Low Rider / Street Bob / Super Glide Custom / Fat Bob / Wide Glide 2014 > 2017
TOURING 1584 / Road Glide 2008 > 2011
TOURING 1584 / Road King / Road King Classic / Electra Glide / Electra Glide Classic / Ultra Classic Electra Glide / Street Glide 2008 > 2011
TOURING 1690 / Road King / Road King Classic / Street Glide / Street Glide Special / Ultra Classic Electra Glide / Electra Glide Ultra Classic Low 2012 > 2013
TOURING 1690 / Ultra Limited / Ultra Limited Low / Road Glide / Road Glide Special / Road Glide Ultra 2012 > 2013
TOURING 1800 / CVO Road King / CVO Road Glide / CVO Ultra Classic Electra Glide 2008 > 2010
TRIKE 1690 / Street Glide Trike / Tri Glide Ultra Classic 2009 > 2013
