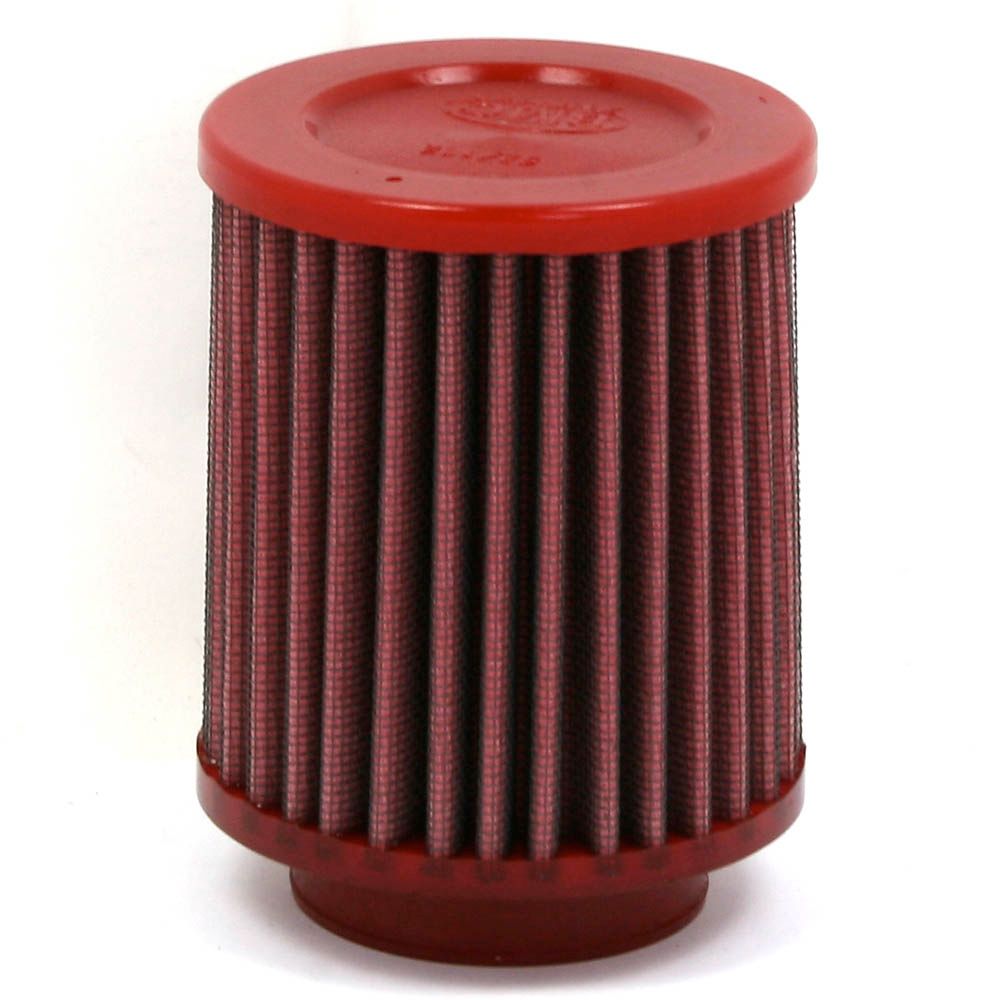

BMC FMSS52-102 Universal 52mm Conical Pod Air Filter

BMC conical filters for direct air intake can be installed on most types of engine by removing the original airbox. BMC direct induction conical filters are manufactured using a characteristic red rubber that allows the connection of the intake to be particularly resistant to both engine stress and heat without suffering from deformations caused by the high temperature. The special filtration mesh allows the production of filters with a power up to 700 HP without presenting problems of filter deformation.

BMC conical filters are available in two versions:
SA (Single Air) with simple lateral air flow - available in carbon top, metal top and plastic top versions
TW (Twin Air) with central and lateral air flow - available in metal top and plastic top versions.

Technical features

Single Air
Flanges: 1
Flange Length (mm): 16
Flange Inside Diameter Ø1 (mm): 52
Base Outside Diameter Ø2 (mm): 89
Height - H2 (mm): 118
Height - H1 (mm): 102
Top Outside Diameter Ø3 (mm): 89
Top material - Finish: Plastic
Filter Material: Oiled Cotton Gauze
Flange Type: Centred
Top style: Single Air
Flange Angle: 0
Washable: Yes
