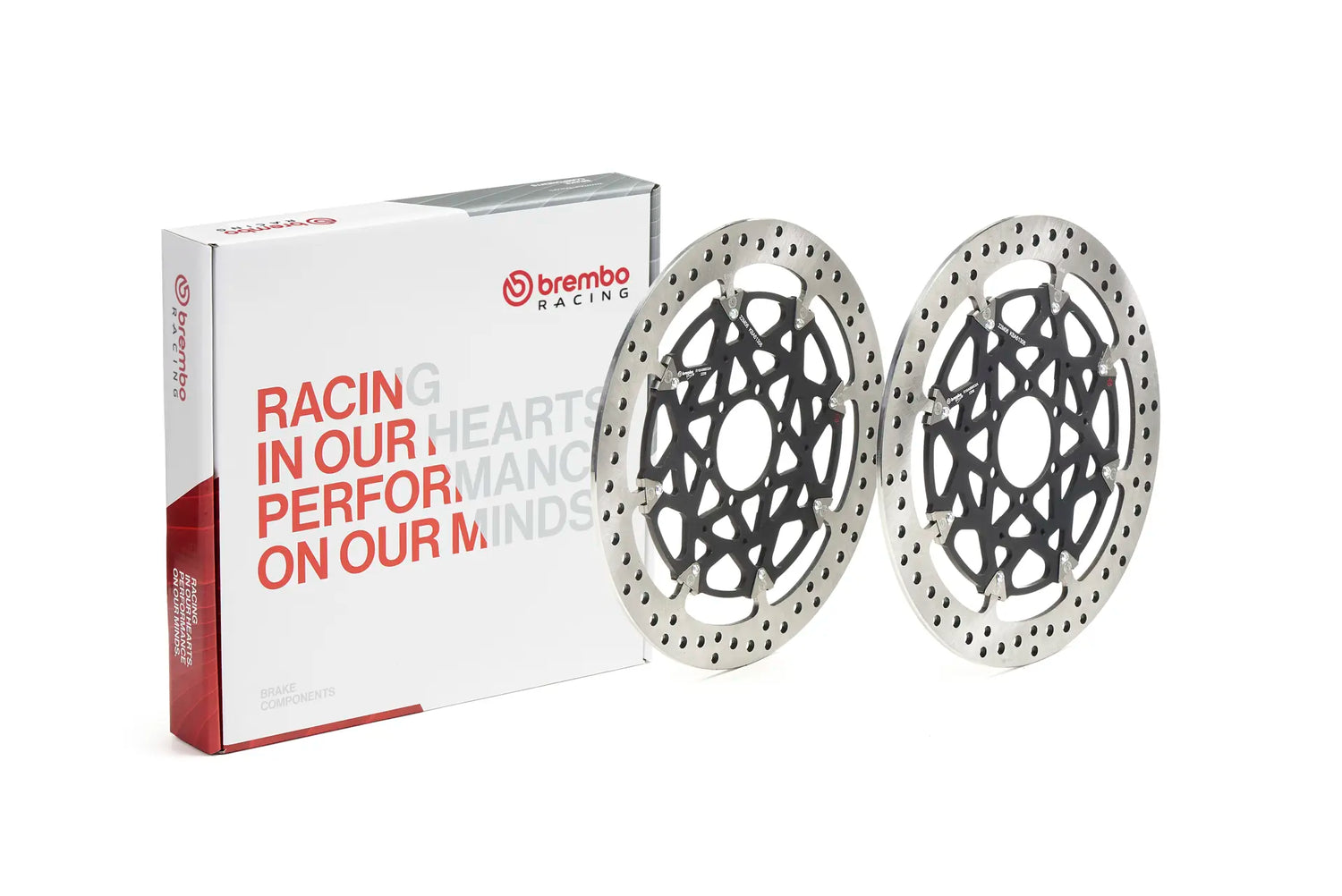

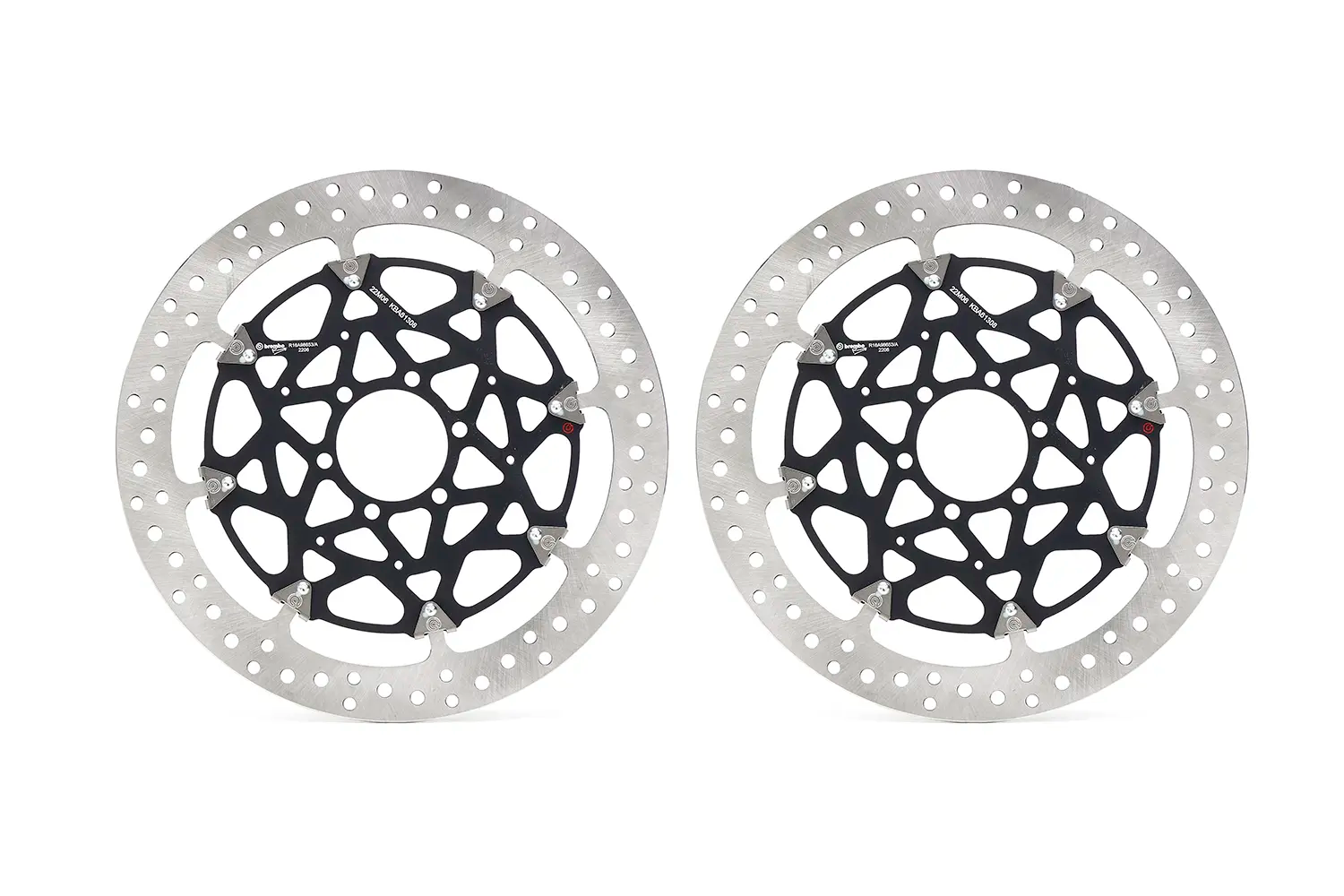

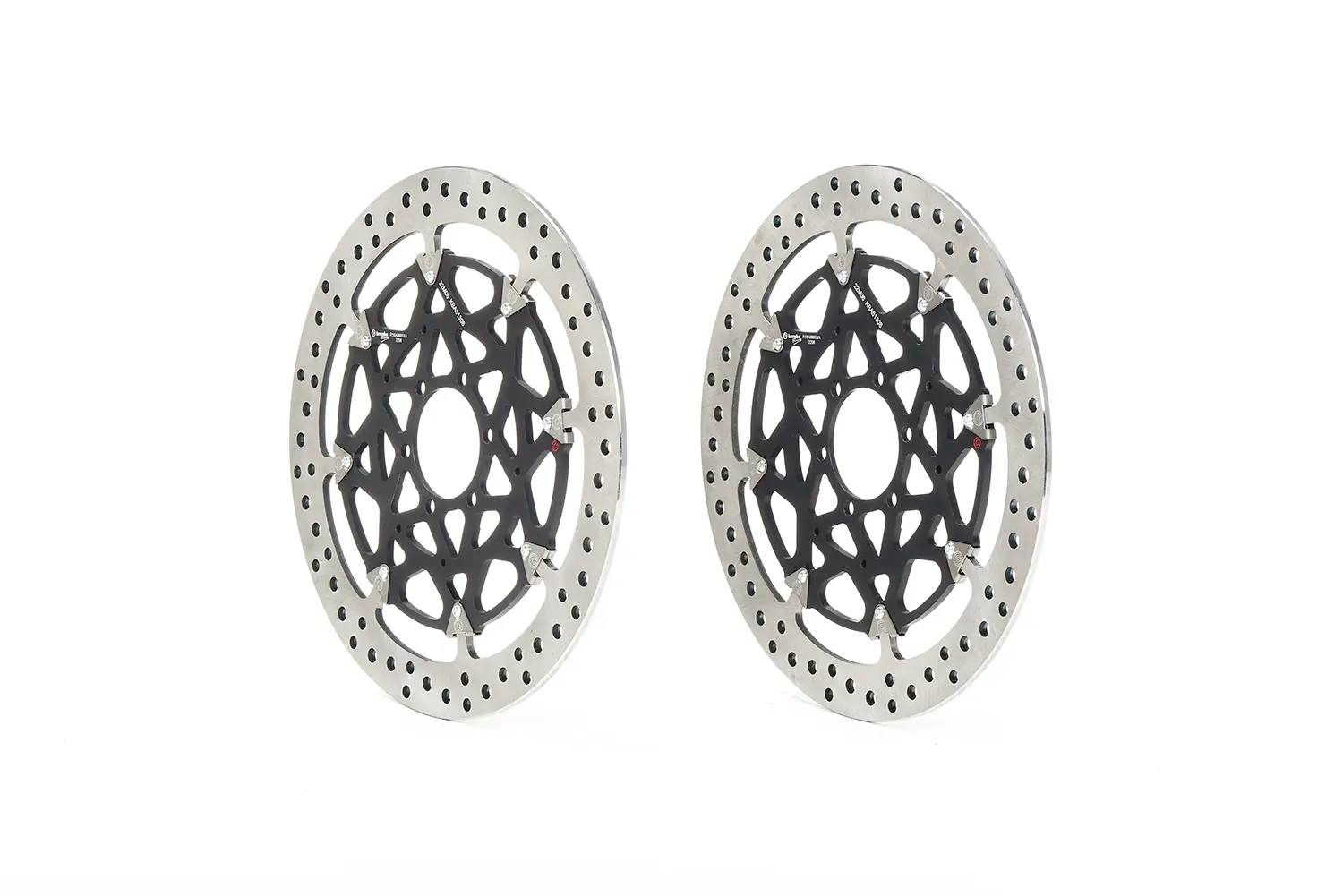

Brembo T-Drive Front Brake Disc for BMW S 1000 R 13-17/S 1000 RR 10-Up

The T-drive disc, born from the experience gained in the top racing categories, is the latest evolution of Brembo racing discs. The special “T”-shape of the pins is the innovative element that strongly differentiates the T-drive from discs with drive pawls. This unique conformation transmits more braking torque, ensuring better resistance to thermal-mechanical stress, especially under extreme conditions of use, such as racing.

Features
• Brembo quality
• Safety
• Performance
• Exclusive style
• For track use only
• Racing inspired
• Sports driving

Technical specifications

Diameter Ø
320mm

Thickness (TH)
5,5mm

Number of holes
6

Hole diameter
8,6mm

Centering (B)
64mm

Brake disc type
Floating

Off set (A)
4,75mm

Surface width
32mm

Weight
3g

Units per box
1
