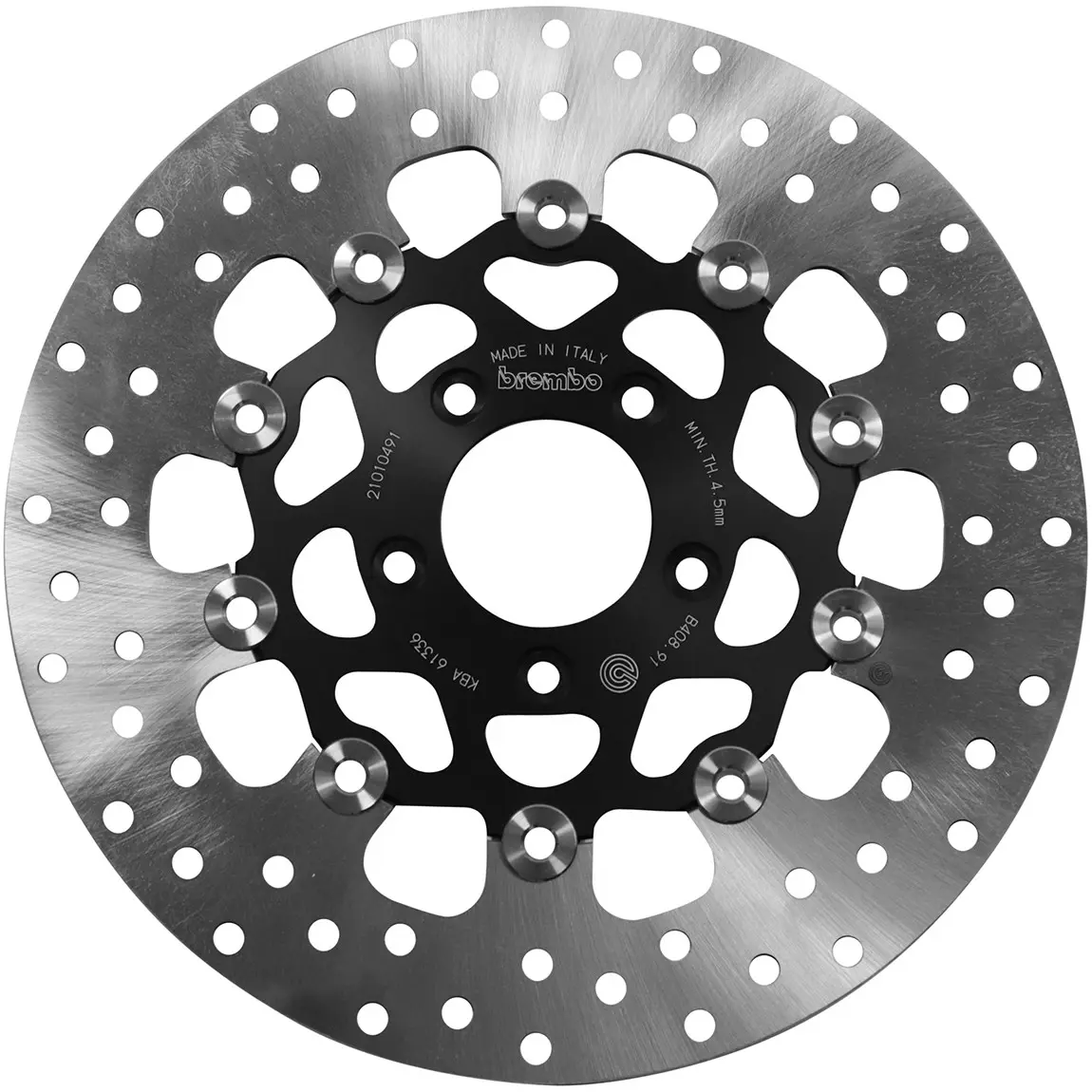

Brembo Serie Oro Floating Front Brake Disc for Harley-Davidson Models

Brembo Serie Oro brake discs are fully interchangeable with an Original Equipment brake disc. They consist of the stainless steel braking band connected by means of drive pawls to the hub made of CNC-machined and anodised aluminium alloy. The vast experience of Brembo was used to define the most correct geometries, tolerances and dimensions for all motorbike types and use. Resulting from a specific study of machining tolerances, the special conformation of Brembo discs allows braking torque to be transmitted more effectively while offering better resistance to thermal and mechanical stress. The Serie Oro was the range with which Brembo entered the racing world in the mid-1970s, quickly becoming the industry benchmark for discs.

Features
• OE-equivalent
• Brembo quality
• Safety
• Performance
• Durability
• Sports driving

Technical specifications

Diameter Ø
292mm

Thickness (TH)
5mm

Number of holes
5

Hole diameter
8,5mm

Centering (B)
56mm

Brake disc type
Floating

Surface width
39mm

Weight
1,67g
