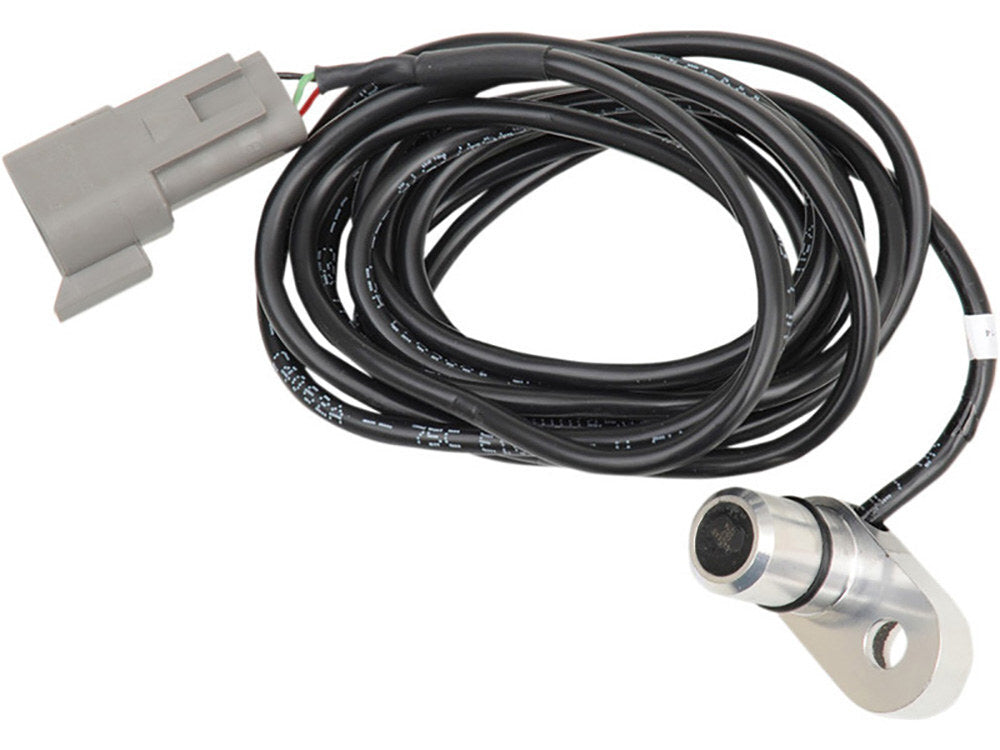

Dakota Digital DAK-SEN-6017 Transmission Speed Sensor for most H-D 96-06 OEM 5 Speed Applications

Transmission speed sensors mount into the sensor port on most 1996- 03 OEM Harley-Davidson transmission (except Sportsters transmissions) and aftermarket big twin transmissions when using Dakota Digital gauges. Inductively reading an internal gear, the sensor provides a pulse signal to the speedometer which in turn calculates and displays the bike's speed.

• SEN-1017 - For use with HLY-30xx Series speedometers (except HLY-3011/3015/ 3016).
• SEN-2017 - For use with HLY-2002 and older series speedometers.
• SEN-5017 - For use with HLY-50xx Series speedometers.
• SEN-6017 - For use with MLX-3000, MLX-2000, MLX-9xxx, MCL-5xxx Series, MCL-4xxx, MCL/ HLY-2002, MVX-2002, HLY-3011/3015/ 3016, HLY-6000 and HLY-1000 series speedometers.

* When used with a six speed or greater transmissions it is required to use the transmission speed sensor spacer supplied with the transmission.

Made of machined aluminum and hand polished.
