Daytona Twin Tec DTT-30880 External Ignition Module w/Single Plug for Twin Cam 04-06/Sportster 04-06 Models w/Carburettor Includes Wiring Harness

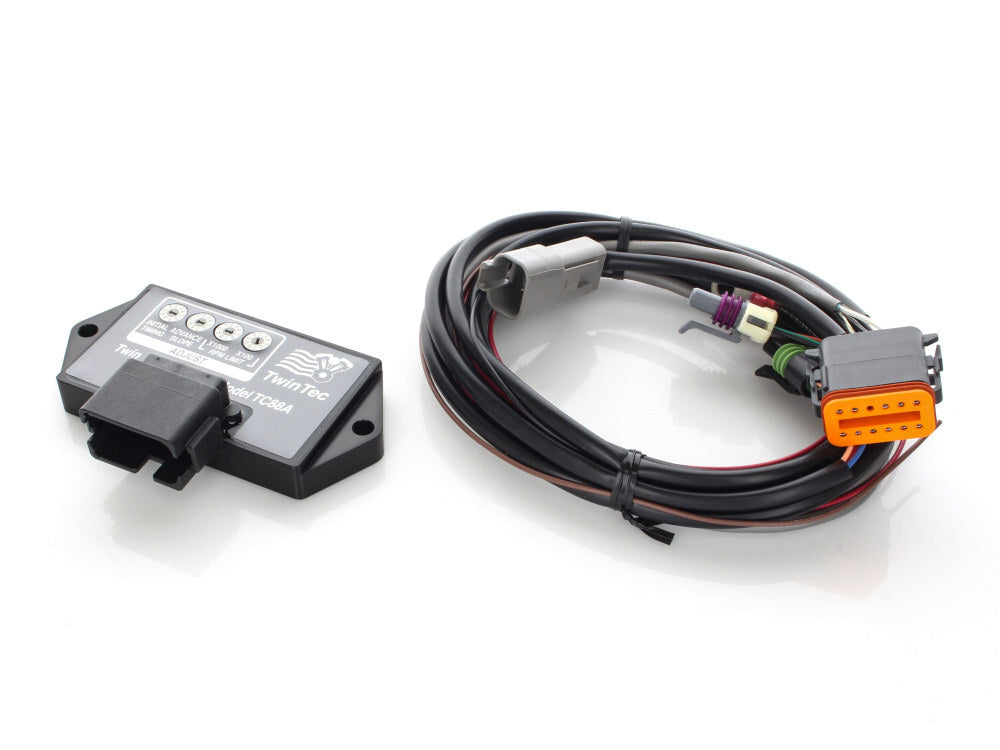

30880 – 1009/TC88A Ignition Module and Harness Only – Includes: 1009 TC88A Race Ignition Module and 1009-HH Wiring Harness – Race Only – Twin Cam –  2004-2006

Direct fit for:

• All 2004-2006 Carbureted Twin Cam 88® Engines and Sportster

NOTE: When ordering for a Sportster, indicate your model year so the correct speedometer calibration can be pre-programmed into the unit.

• 1009-HH Harness includes connectors for: Coil, MAP Sensor, Crank Position Sensor, Diagnostic Port and connections for: Ground, 12v Key On Power and Tachometer, this is a complete replacement harness that can be used for: Custom Twin Cam bike builds or replacing a faulty stock wiring harness (2004-2006 Carb)
• PN 30880 requires –> TC88A Ignition module, 18014 USB Interface, 2008 Ignition coil and 3002 plug wires.
• When performing a custom 2004-2006 Twin Cam build or if your stock harness is bad – use our complete kit part number 30881 , which includes a replacement ignition wiring harness, module, coil, wires and USB.
• The 1009-EX version of this product is emissions legal – the difference between the two products is that this version of the product has advance curves with a slightly larger adjustment range and it not been tested for emissions compliance.
• When performing a custom 2004-2006 Twin Cam build or if your stock harness is bad – our complete kit part number 30881 includes a replacement ignition wiring harness.
• Plug and Play for ALL HD 2004-2006 Carb Twin Cam Engines
• Compatible with all aftermarket tachometers
• Built-in data logging, stores the last 30 minutes of operation
• Easy to access and adjust the four rotary config switches
• Supports all OE sensors, including the instrument cluster, turn signal/security module (TSM/TSSM) and the J1850 data bus
• Wide timing advance adjustment range accommodates stock to highly modified engines.
• Digitally set RPM limit (100 RPM steps from 3000-9900rpm)
• Coil outputs protected against short circuits
• Extensive diagnostics
• Optional USB interface and software for programming a custom advance curve
• Billet aluminum housing with black anodized finish
• PN 2008 COIL Fits most 1999 and later carb models – same size as stock coil P/N 31655-99 (will not fit in place of P/N 31639-99)

Twin Cam engine utilize a non-adjustable crankshaft position sensor, this means that mechanical timing adjustments are no longer possible. The 1009/TC88A allows you to adjust your initial timing +-4 degree using a rotary switch. A second switch sets the advance curve slope. The combination of these two switches allows the user to optimize the timing advance for a wide range of applications – from stock to highly modified engines. For details, including advance curves, please download you can download the installation instructions from our website.

You can also adjust the slope and advance curves by using our TC88 PC Link software and USB adapter pn 18014 to build your own timing advance for a wide range of applications – stock to highly modified engines. For details, including advance curves, download the installation instructions (below). Note: USB interface 18014 plugs into the existing H-D diagnostic connector on the OEM motorcycle wiring harness.

The 1009/TC88A also features built-in data logging that stores data in an endless loop for the last 30 minutes of engine operation including RPM, vehicle speed, manifold pressure, ignition advance, and battery voltage. Engine builders will find the data logging feature highly useful for tuning, diagnosing problems, and reducing unjustified warranty claims

Like the H-D® OE module, the TC88A sends RPM data to the OE tachometer over the J1850 data bus. TC88A units also provides an optional 12 volt square wave tach signal (one pulse per revolution) that is compatible with most tachometers intended for 1999-2003 Twin Cam 88® applications. This allows you to retrofit a wide range of tachometers to newer 2004-2006 models. Please download the TC88A installation instructions for details on tach hookup. If you plan to use the optional tach hookup, you will require the USB interface and software to enable the tach output.

TC88A-IH – Special Version for 2004-2007 American IronHorse® Motorcycles
American IronHorse® motorcycles use a non-adjustable ignition system manufactured in England by Gill. The 1009-IH/TC88A-IH is a special version of our TC88A ignition that is compatible with 2004-2007 American IronHorse® models. Installation requires the replacement of the OE 18 terminal AMP connector used with the Gill module and replacing it with a 12 terminal Deustch connector supplied with the 1009-IH/TC88A-IH kit. On 2005 and later models, some minor rewiring of the MAP sensor and engine temperature sensor ground connections is also required. Please refer to the 1009-IH/TC88A-IH Installation Instructions for details.

Building a 1999-2017 Twin Cam Engine for Racing?
We recommend that you utilize our 30081-T Complete TC88-T Racing Ignition and Harness Kit – Includes: 1008-T TC88 Race Ignition Module with Two Step, 2008 Coil, 3002 Wires and 1008-HH Wiring Harness. This kit has everything that you need to wire and fire your new Twin Cam race build. This kit includes the TC88-T version of the ignition module which does not have the ability to communicate with the 2004+ modules. Please refer to the 3008-T Complete TC88-T Racing Igniton Kit with Harness for details.
