Feuling  |  SKU: ROL-FE-1346

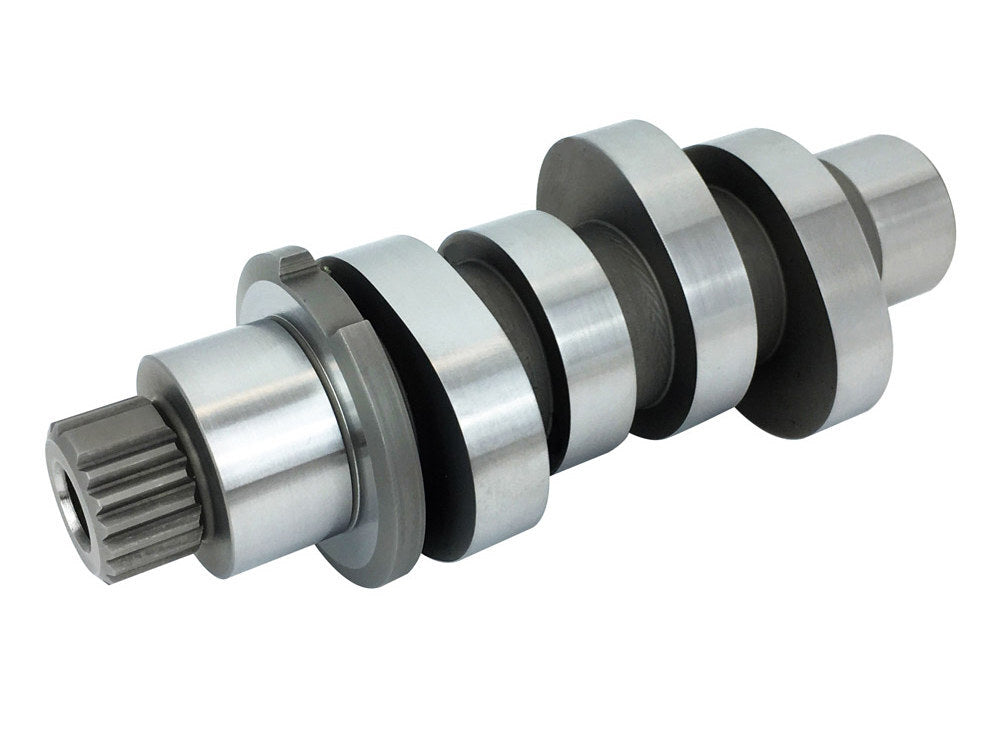

Feuling FE-1346 521 Reaper Chain Drive Camshaft for Milwaukee-Eight Touring 17-Up/Softail 18-Up

In Stock

Online Only

Ready For Delivery

$515.00

Description for Feuling Parts 521 Reaper Camshaft - 1346

• Aggressive pulling power with a "nasty" sound, the Reaper 521 grind will shine in 114" and larger cubic inch engines with added compression ratio

• Ported cylinder heads are not required, but will complement the cam and add even more pulling power throughout the range

• Stock throttle body produces an excellent powerband; use of a high flow throttle body may increase peak power numbers

• A high-flow exhaust system and air cleaner is highly recommended for optimal performance

• Fueling recommends matching 521 cam with Race Series oiling system

• High lift valve springs are required on stock cylinder heads; offer Part no. 189642 or 189643

• Heavy-duty one-piece pushrods are also highly recommended

• RPM range 2250 - 6250

NOTE: Screamin' Eagle® cylinder heads have high lift valve springs and do accept the 521 grind cam.

DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES

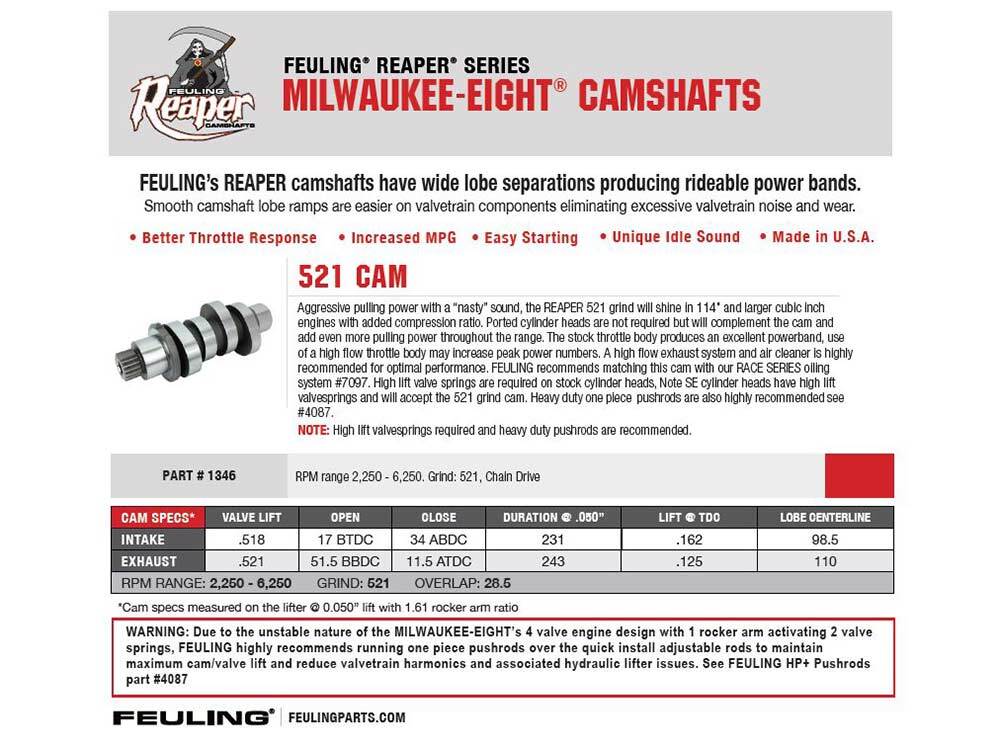

SPECS:

• Part # 1346 Valve Lift Open Close Duration @ .050" lift @ TDC Lobe Centerline
Intake .518" 17 BTDC 34 ABDC 231 .162" 98.5°
Exhaust .521" 51.5 BBDC 11.5 ATDC 243 .125" 110°
RPM range: 2,250 - 6,250 Grind: 521 Overlap: 28.5°

NOTE:  Cam specs measured on the lifter @.050" lift with 1.61 rocker arm ratio


Included Items:

(1) Camshaft

Instructions


The Air Resources Board (ARB) does not permit the use of aftermarket emission-related parts that alter the air/fuel ratio of an emission-controlled vehicle. Due to these legal restrictions this part cannot be shipped to California.

Product Specs for Feuling Parts 521 Reaper Camshaft - 1346

Part #: FE-1346
Mfg #: 1346
Type Camshaft
Units Each
Weight 1.90 lbs

(Part Numbers: ROL-FE-1346)
