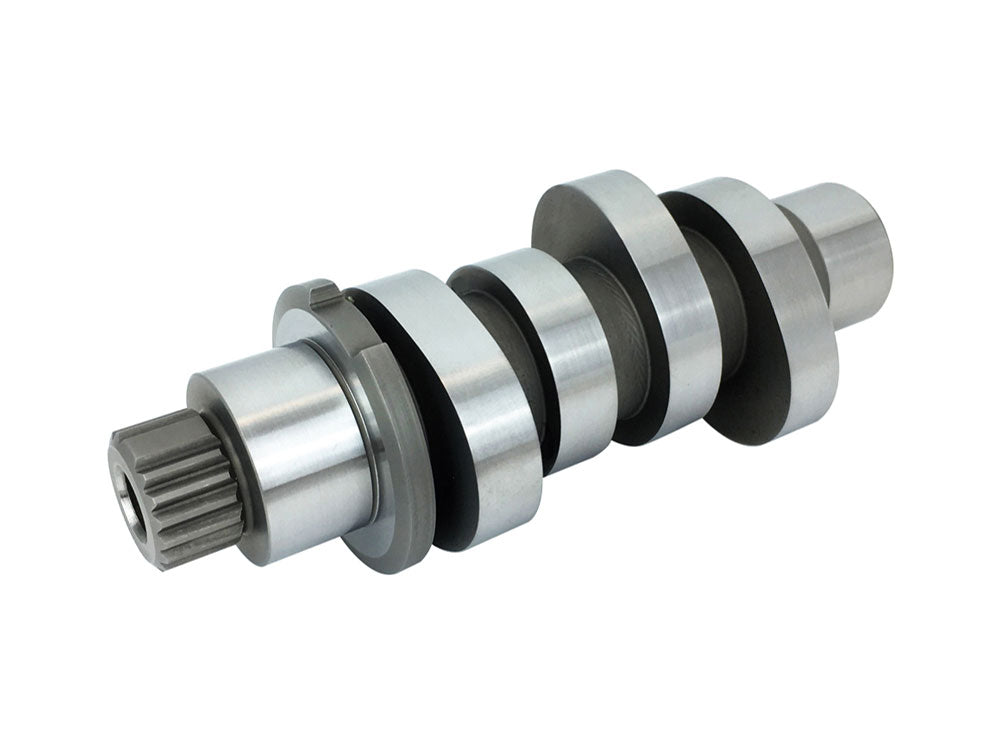

Feuling FE-1352 612 Reaper Chain Drive Camshaft for Milwaukee-Eight 17-Up

618 F CAM - RACE SERIES CAMSHAFT Requires large bore size, ported cylinder heads, ported intake manifold, high flow valves and large throttle body. Aggressive camshaft requiring high lift and higher load valvesprings see #1207, performance pushrods and lifters. High flow air cleaner and triple stepped exhaust pipe highly recommended. FEULING also recommends matching this cam with our RACE SERIES oiling system #7097 or #7099.

NOTE: High lift/High Load valvesprings required see recommended Feuling HIGH LOAD BEEHIVE valvespring kit #1207 (DRAG# 0926-3138). Heavy duty pushrods #4087 (Drag# 0928-0091). Clearances MUST be checked when installing this cam.

Part # 1352 RPM range 3,100 - 6,650. Grind: 618

Valve Lift Open Close Duration @ 50" TDC Lift Lobe Centerline
Intake .608 20 42 242 195 101
Exhaust .618 65 19 264 170 113
Overlap: 39
Lobe Separation: 107

Feuling® does not recommend tuning beyond stock emissions standards.

Fits: Milwaukee Eight '17 - '26 Except VVT, 618 grind chain drive cam, requires high lift valvesprings, performance pushrods and lifters. RPM 3,100-6650+
