Feuling FE-7096 HP+ Oiling System for Milwaukee-Eight Touring 17-Up/Softail 18-Up w/Oil Cooled Engine

Increase oil pressure, oil volume, engine oil flow and return oil scavenging, 50% reduction  of engine sump pump oil level and oily air cleaners. Test results show 15-25 degree cooler engine temperatures and 15-30 degree cooler oil temperatures. Results also show a substantial increase of oil pressure and 2 HP increase and 2 ft/lbs of TQ gain to the rear wheel.

• HP+® kits include FEULING'S® HIGH FLOW billet camplate made from 7075 aluminum which is 50% harder and stronger than the factory or Feuling OE+ camplates. FEULING® increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil port holes throughout the camplate to the port holes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings.

• Oil pumps are bench tested, the relief valve is seated and sealed to a minimum of 30 psi with full pop off at 55-60 psi. The increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function.

• Oil pump and camplate combination eliminate common pressure and scavenge issues associated with the factory oiling systems.

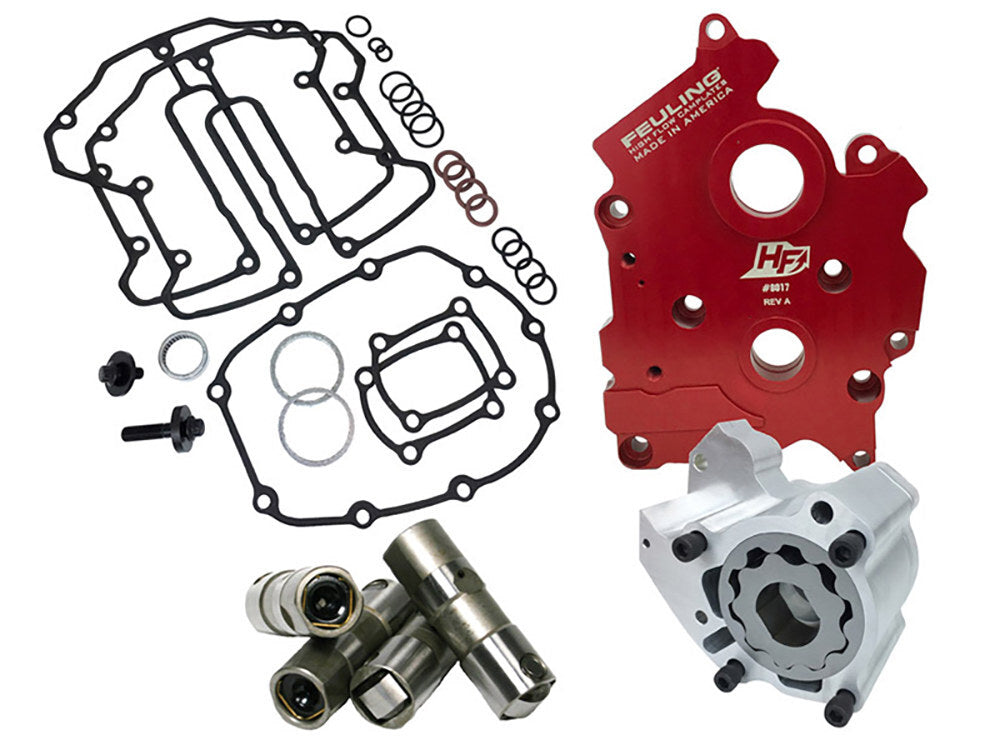

HP+® SERIES Kits includes a billet 6061 aluminum high volume oil pump, FEULING® HIGH FLOW camplate, HP+® Hydraulic roller lifters and cam installation kit.

(1) Aluminum oil pump assembly

(1) Red aluminum camplate

(4) Hydraulic roller lifters

(1) Roller bearing

(1) 3/8"-24 X 1-3/4" 12 Point external wrenching bolt

(1) 5/16"-18 x 3/4" 12 Point external wrenching bolt

(1) Thick flat washer

(1) Thin flat washer

(21) O-Ring

(3) Engine case gaskets

(2) Exhaust gaskets

(2) Rocker box gaskets

(1) .5 oz. Fastener assembly lubricant

(1) 0.5 fl. oz., Engine assembly lube

(1) Loctite #242

Instructions
