Feuling FE-9006 Oil Pump Pressure Test Tool for Feuling M8 Oil Pump

These pressure test tools are must haves for any H-D^® Twin Cam and Milwaukee Eight engine builders. Bench test each camplate on T/C and oil pump for the Milwaukee Eight before installation, cycle the pressure relief valve, testing operation and assuring the valve moves freely, seats and seals each time, any leakage at the relief valve will reduce oil pressure.

This tool allows the engine builder to know what PSI the relief valve opens; the spring tension can be adjusted to achieve the desired pop off PSI. Tool includes: air regulator, 0 - 100 psi pressure gauge, gasket & needed hardware. Feuling^® recommends the camplate/oil pump valve be seated and sealed Min 0-30 psi with full pop off at 55-60 psi. Made in the U.S.A.

Proper relief valve seal will insure good hot idle oil psi and reduce oiling system cavitation and related issues.

Fits: Milwaukee Eight 17 Oil Pumps, includes adapters to fit Feuling oil pump, factory oil cooled water cooled oil pump.

Note:  For replacement gasket, order Part No. 284618

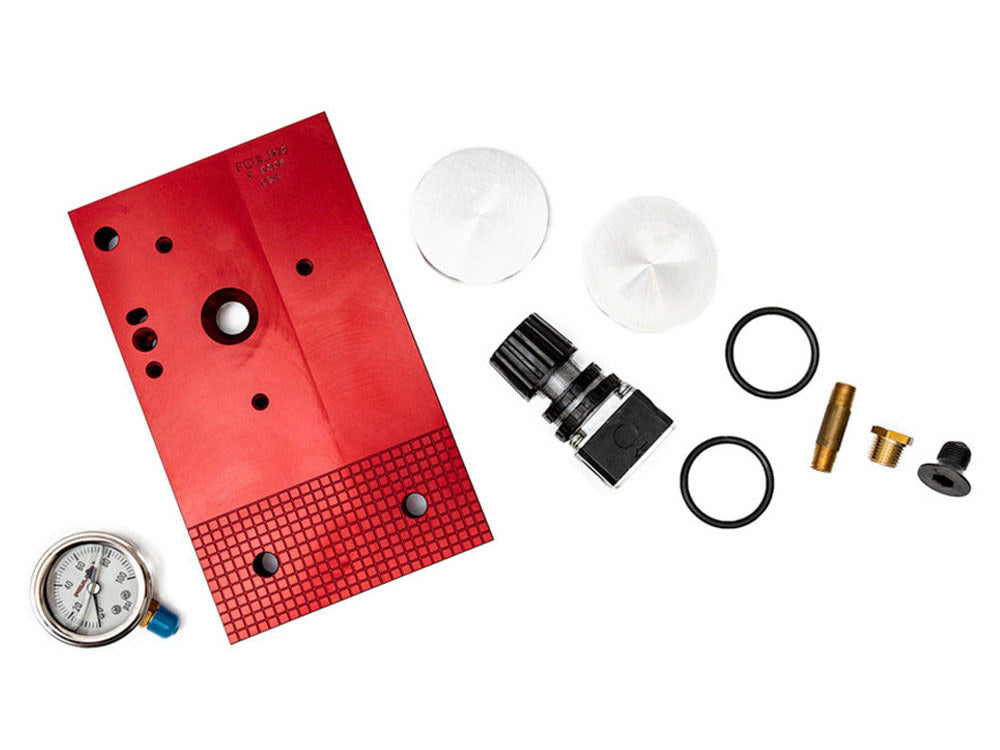

(1) Red aluminum tool plate

(1) Gasket

(1) 0-100 PSI gauge

(1) Regulator

(1) Chrome plug for water

(1) Chrome plug for oil

(2) O-rings

(2) Fittings

No instructions
