Jims Machine  |  SKU: ROL-JM-8085L

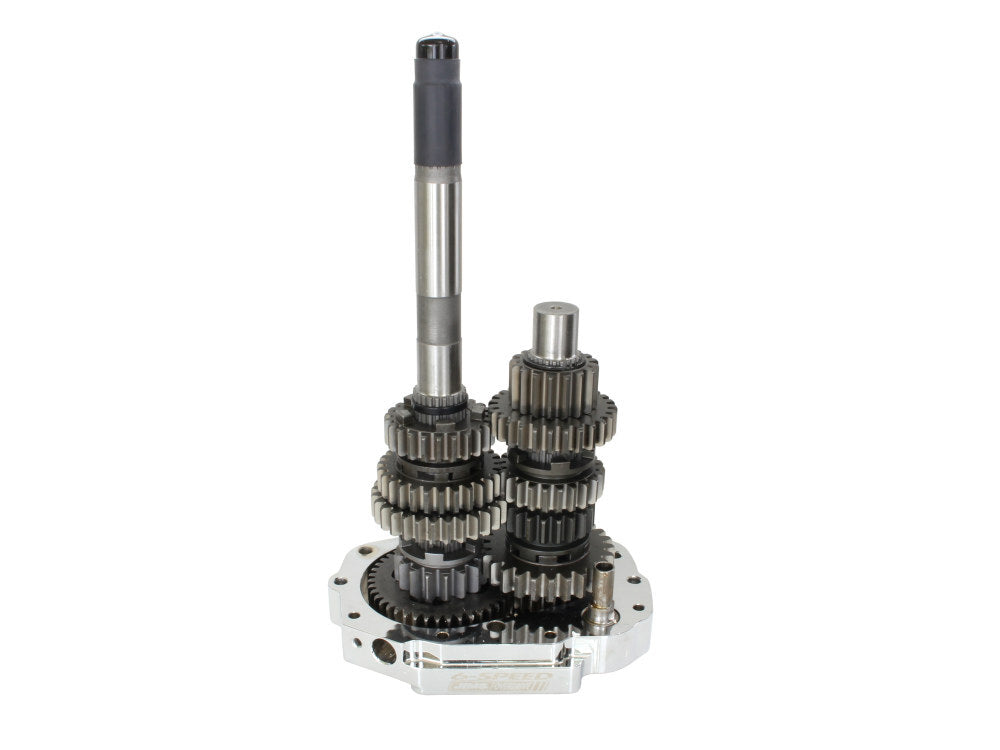

Jims Machine JM-8085L 6 Speed Overdrive Transmission Cassette for Softail 00-06/Dyna 01-05/Touring 01-06

Only 3 Left

Online Only

Ready For Delivery

$4,181.00 $4,331.00

JIMS 6-Speed Overdrive Super Kit - 8085L

  • Designed to turn stock 5-speed transmissions into a 6-speed
  • Reduces vibration that creates wear
  • Creates a more relaxing cruising speed
  • All gear sets use 2.94:1 close-ratio 1st gear that widens bike's speed range in 1st gear and lessens the rpm drop when shifting into second
  • Overdrive 6th gear (.86:1 ratio) lowers engine rpm by almost 475 at 75 mph
  • Made in the U.S.A

    NOTES:
    Requires speedometer sensor block-off plate kit (#27-1591); if speedometer is not driven from transmission, then two block-off plates kits are required.

    Requires speedometer be recalibrated.

    Trap door extends 3/8" farther to right than stock part. Alteration to some parts that attach to or around the trap door may be required.

    When installing in 02-06 FLHT/FLHR/FLTR/FLHX transmission case, you will need an oil filler spout spacer (#H20-138)

    This item ships 3-4 business days after order is processe

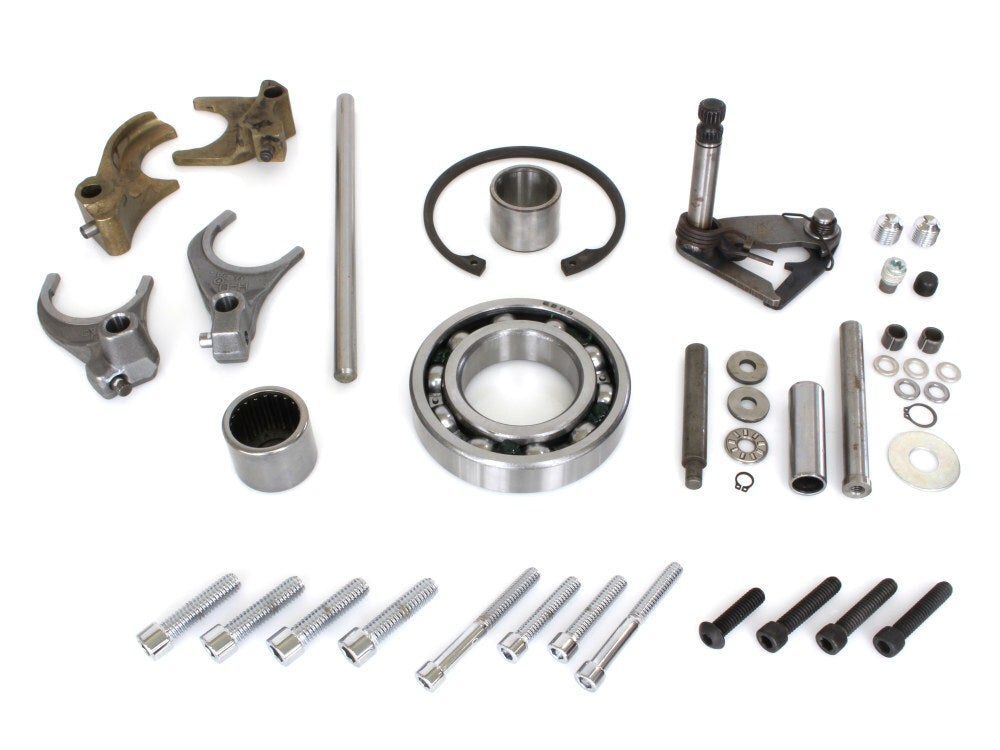

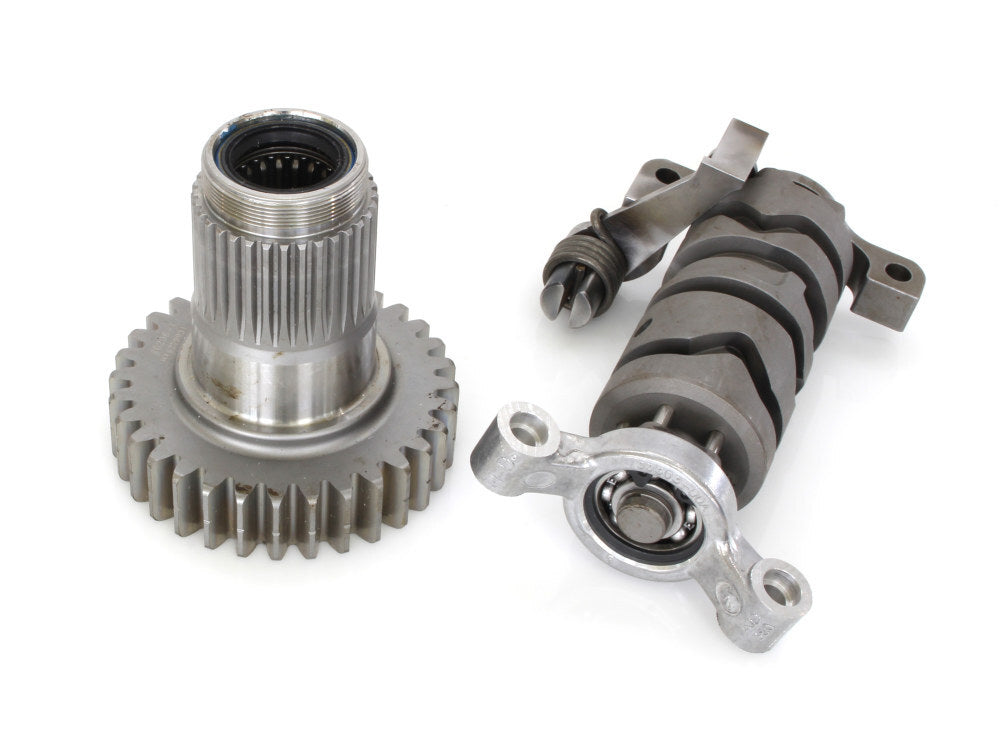

    Included Items:
    1. (1) Gear assembly
    2. (1) Gear set
    3. (1) Shirt drum
    4. (1) 5th gear main shaft
    5. (1) Shift lever assembly
    6. (4) Shift forks
    7. (2) Shafts
    8. (1) Race main shaft
    9. (1) Rod clutch release
    10. (1) Throw out bearing
    11. (1) Door bearing
    12. (1) Retaining ring
    13. (2) Split pins
    14. (1) Drain plug
    15. (1) Spacer
    16. (5) 1/4"-20 x 1 1/4" socket head bolts
    17. (2) 1/84"-20 x 2" socket head bolts
    18. (5) 1/84" flat washer
    19. (1) 3/8"-24 plug
    20. (1) 7/16"-20 nut
    21. (4) 5/16"-18 x 1 1/4"
    22. (1) 1/4"-20 x 1" button head bolt


Specs for JIMS 6-Speed Overdrive Super Kit - 8085L

Type Gear
Units Set
Weight 27.55 lbs

Alternate/OEM Part Number(s):

11030009

(Part Numbers: ROL-JM-8085L)
