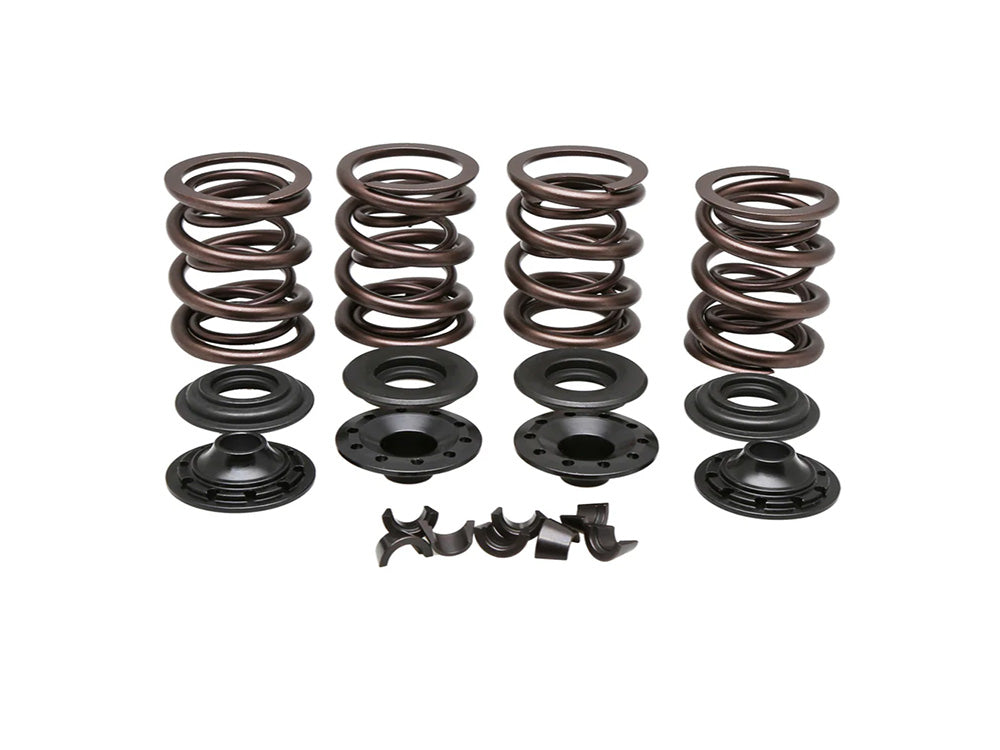

Kibblewhite KPM-20-21150 Racing Valve Spring Kit for Harley-Davidson Big Twin 78-84 w/0.600" Lift

All KPMI® retainers are designed using the latest CAD software available. Further, the retainers are tested using finite element analysis (FEA) to ensure the retainer can endure high stress levels during operation. By using billet aircraft alloy material, heat treating it, and then employing our high powered design software, KPMI® is able to maximize weight saving by incorporating a series of drilled holes in the retainers. These retainers are both strong and light, allowing significant reduction to overall valvetrain mass, which is known to improve performance.

Specs
Type: Intake/ Exhaust
Retainer Material: H.T. Steel
Valve Lift: 0.600"
Installed Height: 1.510"
Seat Pressure: 152#
Open Pressure: 387#
@ Lift: 0.600"

Note: This basewasher is counterbored allowing for a 0.720" outside diameter seal to sit inside the base for additional seal to retainer clearance.
