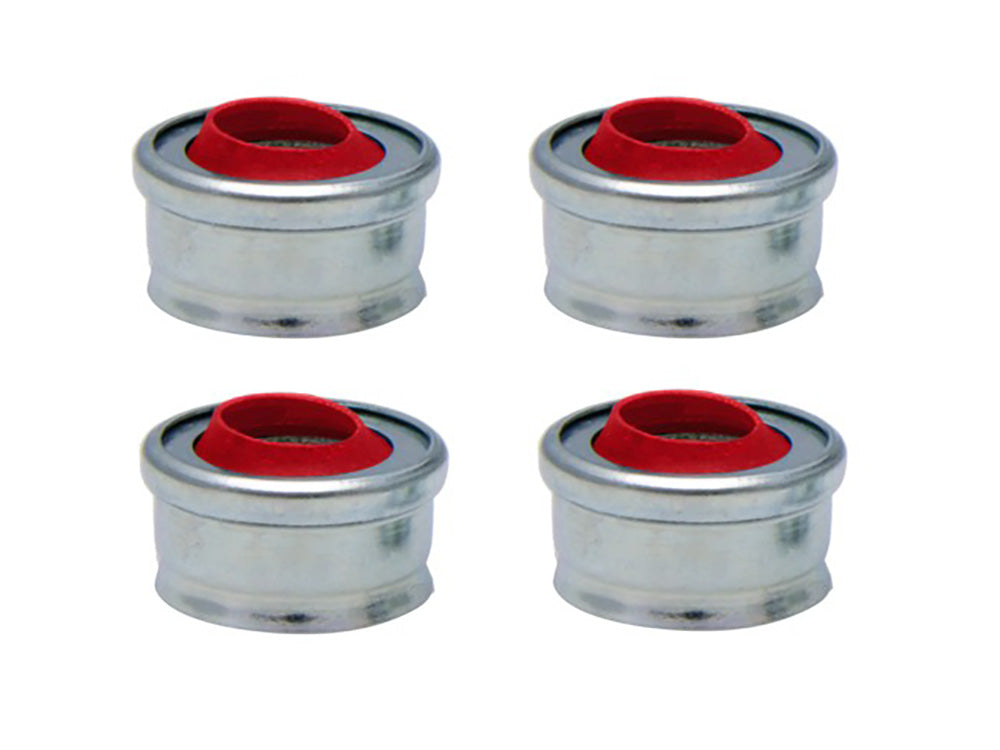

Kibblewhite KPM-71036-4 Valve Guide Seals Viton for Harley-Davidson Big Twin 80-84

These OE style seals incorporate a special low friction graphite impregnated PTFE sealing element. PTFE material does not have memory and therefore is subject to creep. Creep allows the seal to conform to mating surfaces, controlling oil, but not letting the parts run dry. PTFE is known to retain its mechanical properties at temperatures as high as 500F. These steel clad seals have a low profile, seal-to-retainer clearance, and will fit inside dual spring assemblies.

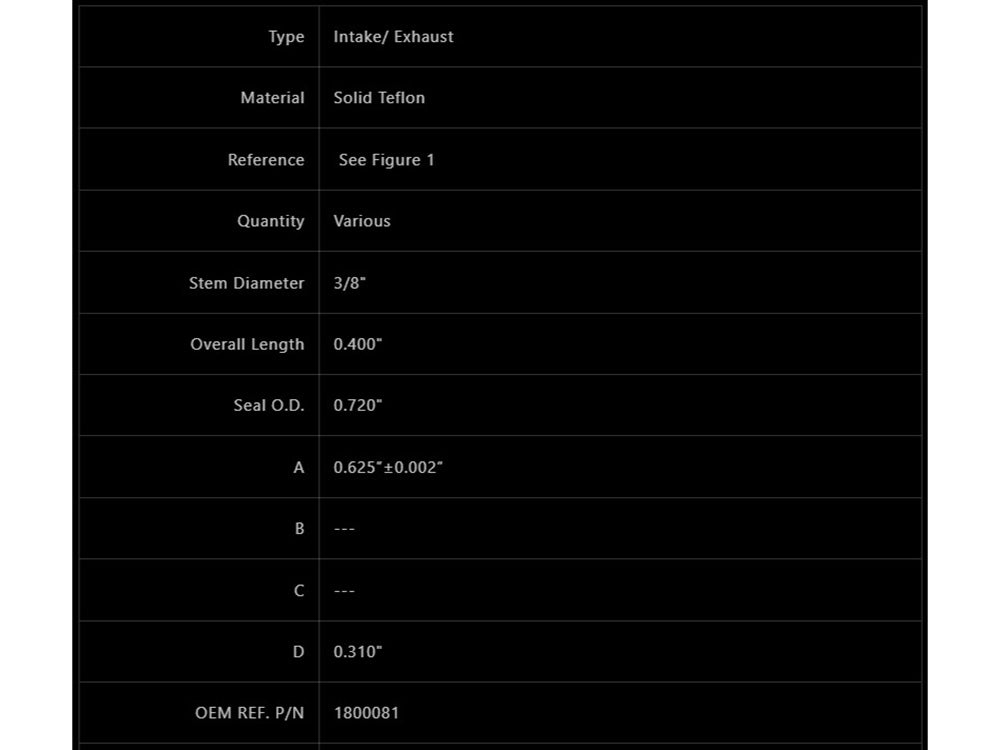

Specs
Type: Intake/ Exhaust
Material: Solid Teflon

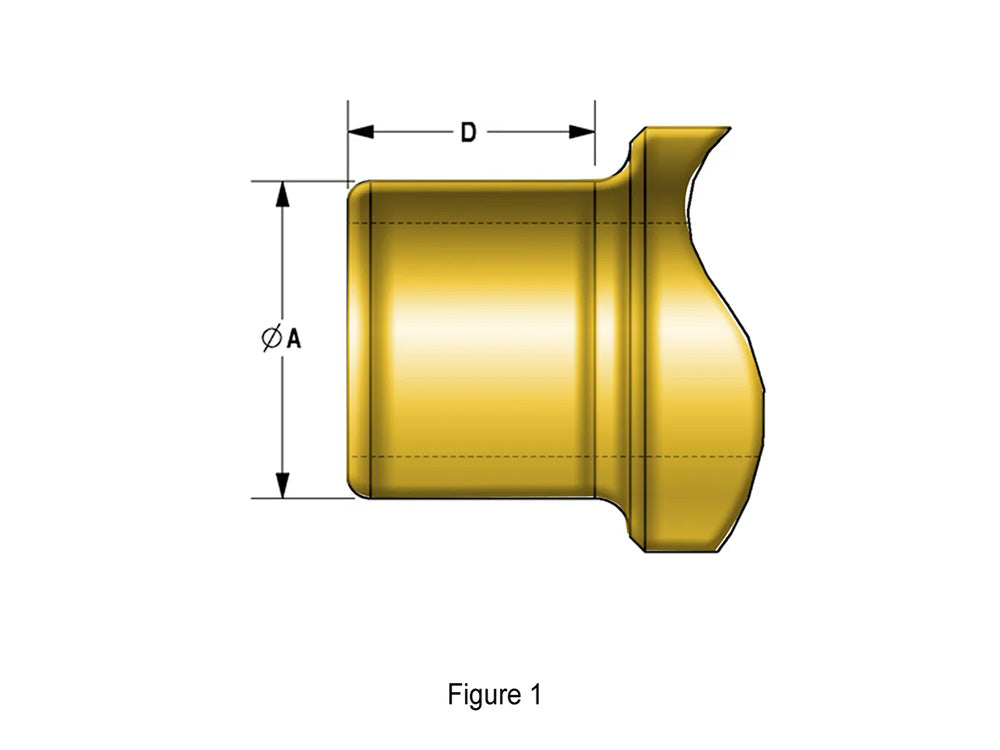

Reference: See Figure 1
Quantity: Various
Stem Diameter: 3/8"
Overall Length: 0.400"
Seal O.D.: 0.720"
A: 0.625”±0.002”
B: ---
C: ---
D: 0.310"
OEM REF. P/N: 1800081

Note: Use the diagram and specifications to ensure your valve guide shares the same dimensions for a proper fit
