Legend LEG-0414-0547 AXEO 39TS Performance +2" Length Front End Suspension for Dyna 91-05/Sportster 87-06/FXR 87-94

Features
• First-of-its-kind through-shaft design eliminates rod pressure inside the cartridge and outperforms drop-in spring kits
• Two-stage system with high-flow piston and wave springs manages compression/rebound and protects against pressure spikes
• Designed to raise ride height and increase suspension travel to 5 inches
• Performance spring rate delivers agile handling for aggressive riders without sacrificing comfort
• Threaded pre-load adjuster allows tuning for various rider weights and increased pre-load range
• Improves cornering clearance, lean angles, and eliminates dragging footpegs
• Improves straight-line stability, high-speed cornering, and maneuverability
• Reduces front-end dive and improves front tire traction under aggressive braking
• Increases resistance to bottoming out on large bumps or potholes
• Designed for optimum performance with Legend’s 14″ rear suspensions

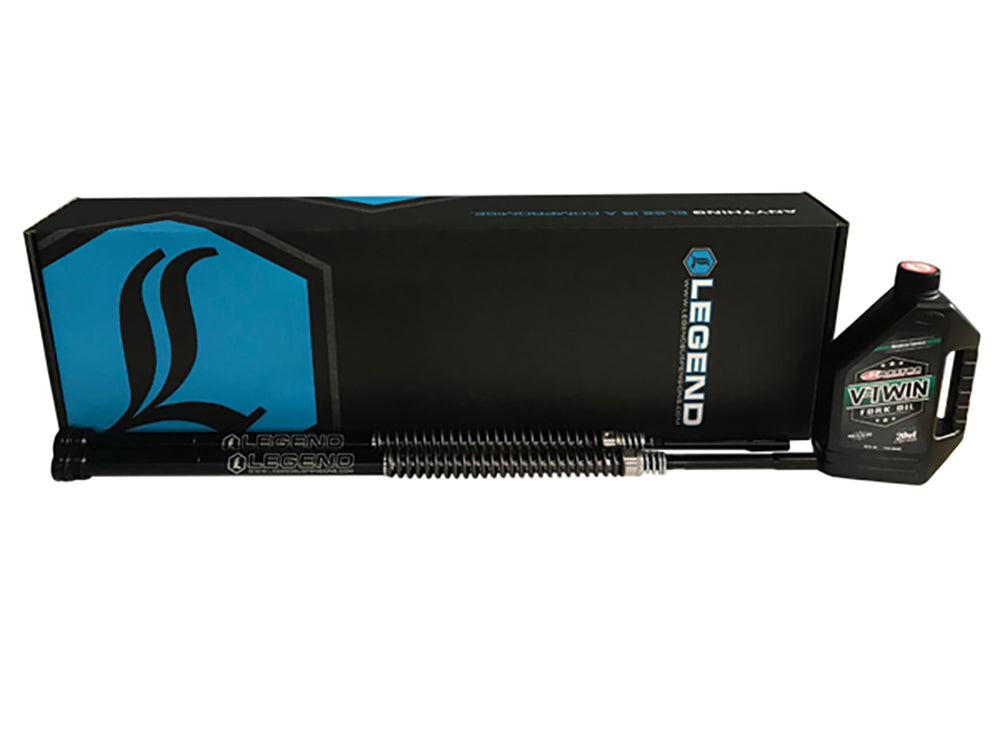

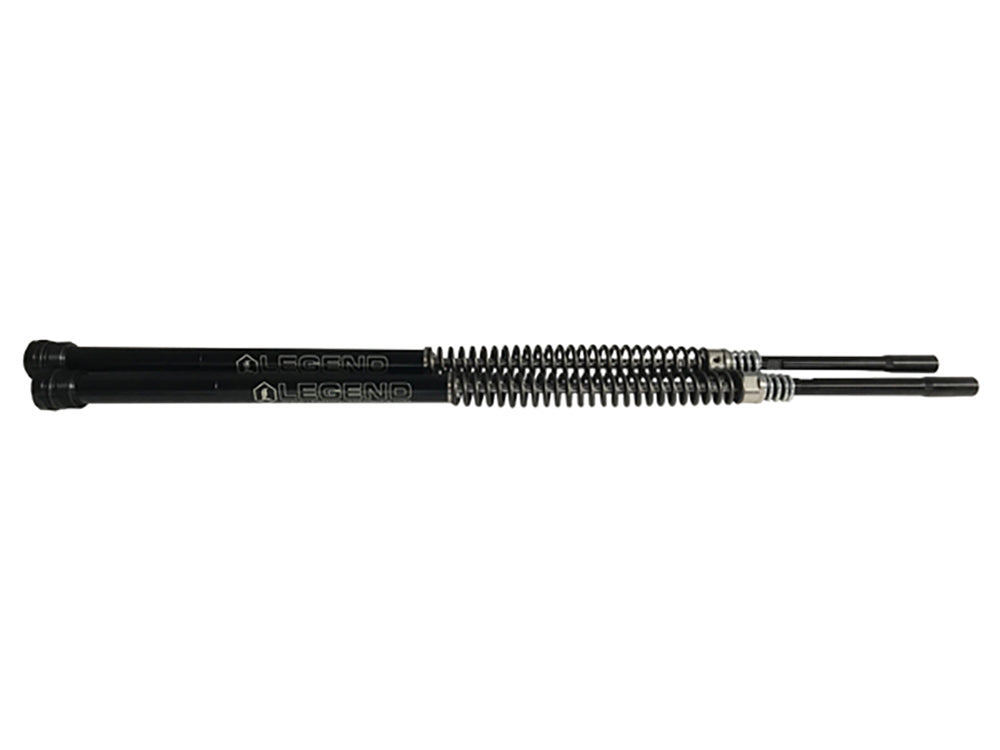

• Includes two 2″ over mono-tube damper cartridges and two top-out springs
• P65 WARNING: Cancer and Reproductive Harm
• Lifetime Warranty
• Assembled by hand in Sturgis, SD USA

NOTES:
PART # 0414-0547

Dyna
• Requires the use of aftermarket +2″ (26.25″) upper fork tubes
• Due to the nature of the design, this front end kit will raise the overall ride height of the motorcycle
• Does not fit 2000-2003 FXDX Dyna Convertible
• Does not fit 2001-2003 FXDXT Dyna Super Glide T-Sport

FXR
• Requires the use of aftermarket +2″ (26.25″) upper fork tubes
• Additional Parts required for FXR 88-90 applications – Harley Davidson P/N 45361-90
• Due to the nature of the design, this front end kit will raise the overall ride height of the motorcycle

Sportster
• Requires the use of aftermarket +2″ (26.25″) upper fork tubes
• Additional Parts required for XL 86-90 applications – Harley Davidson P/N 45361-90
• Due to the nature of the design, this front end kit will raise the overall ride height of the motorcycle
• Does not fit 1996-2003 XL 1200 Sport
