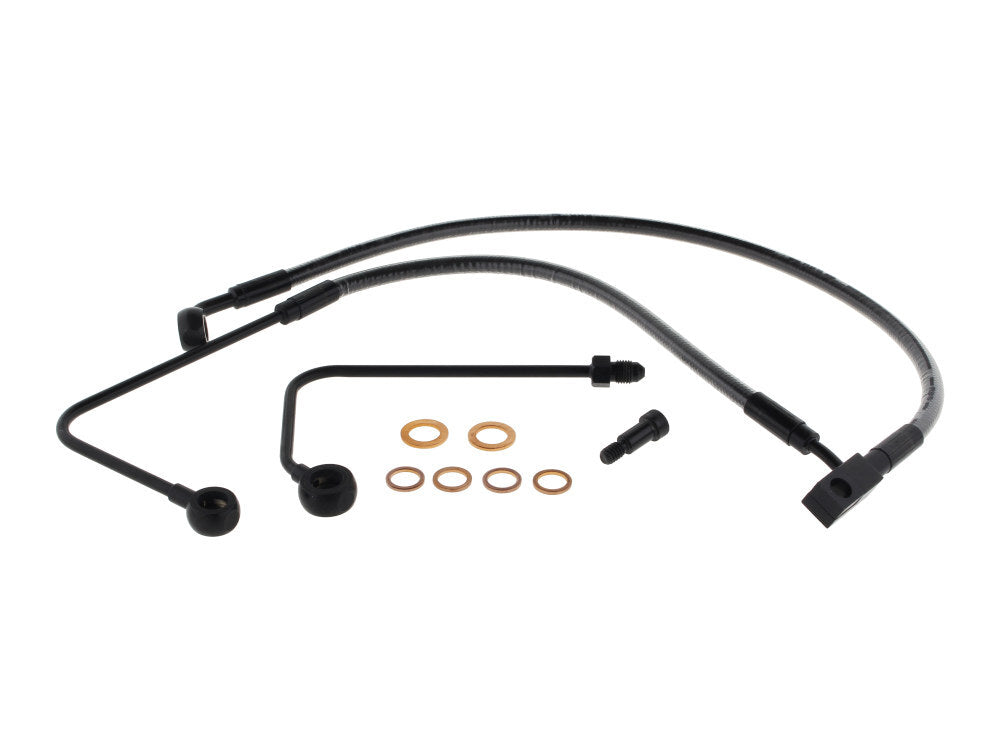

Magnum Shielding MS-AS47001 Black Pearl Stock Length Lower Front Brake Line for FLST Softail 11-17/Breakout 15-17 w/Single Front Disc Caliper

• Ultra-low-expansion brake line construction designed specifically for ABS system requirements

• Black Pearl has a crystal clear-coat over a black wire braid with black-chrome fittings

• Matching braid color and weave on all Magnum control cables and brake lines

• Crystal clear outer jacket offers exceptional protection against scuffing paint or chrome and will never discolor

• All fittings are highly polished and chrome on the Sterling Chromite II and Polished Stainless lines or black chrome plated on the Black Pearl lines

• Inner PTFE tubing with over 100% coverage provides the ultimate in high performance by greatly reducing line expansion in stock and plus-length applications for excellent brake control and safety ratings

• ABS models utilize a two-piece design consisting of a direct bolt-on lower assembly used in conjunction with alternative length upper lines joined together by AN -3 fittings for easy installation

• Exceeds all DOT FMVSS-106 requirements

NOTE: Upper and lower brake line kits are sold separately to allow for a perfect fitment.
NOTE: Non-stock applications require taking a measurement for the upper brake line length and banjo angle to ensure correct fitment (see How to Order below).
NOTE: Harley-Davidson motorcycles equipped with single disc ABS (anti-lock brake system) require ABS specific upper and lower brake line kits. Failure to do so may result in compromised anti-lock braking ability. Magnum Shielding brake line kits manufactured specifically for these applications are identified with the letters "ABS" printed directly on the brake hose
IMPORTANT - HOW TO ORDER:

• Lower lines are model specific

• Stock fitments: Use the stock reference chart to determine what upper line length would be stock for your application. Please note: ABS stock lengths are different than non-ABS

• Stock reference chart: The chart gives you the stock banjo angle used for the master cylinder. You may prefer to use a different banjo angle based on alternate routings or changes to the handlebars

Upper OEM Brake Line Length and Banjo Size/Angle
Fitment: 12-13 FLS, 11-13 FLSTF, 12-13 FLSTFB, 11-13 FLSTN, 11-13 FXS - OEM Length - 30 in. Banjo/Angle - 7/16 in./35°
Fitment: 11-13 FLSTC - OEM Length - 32 in. Banjo/Angle 7/16 in./180°
Fitment: 11 FLSTFB - OEM Length - 26 in. Banjo/Angle 35°
Fitment: 11-13 FXST, 11 FXCW/C - OEM Length - 22 in. Banjo/Angle 7/16 in./35°
