Magnum Shielding  |  SKU: ROL-MS-AS47003

Magnum Shielding MS-AS47003 Black Pearl Lower Brake Line for FXS Blackline 11-13/Breakout 13-14 w/Single Front Disc Caliper

In Stock

Online Only

Ready For Delivery

$317.00

Magnum Black Pearl Designer Series ABS Front Lower Brake Line for Softails - AS47003

  • Ultra-low-expansion brake line construction designed specifically for ABS system requirements
  • Black Pearl has a crystal clear-coat over a black wire braid with black-chrome fittings
  • Matching braid color and weave on all Magnum control cables and brake lines
  • Crystal clear outer jacket offers exceptional protection against scuffing paint or chrome and will never discolor
  • All fittings are highly polished and chrome on the Sterling Chromite II and Polished Stainless lines or black chrome plated on the Black Pearl lines
  • Inner PTFE tubing with over 100% Kevlar® coverage provides the ultimate in high performance by greatly reducing line expansion in stock and plus-length applications for excellent brake control and safety ratings
  • ABS models utilize a two-piece design consisting of a direct bolt-on lower assembly used in conjunction with alternative length upper lines joined together by AN -3 fittings for easy installation
  • Exceeds all DOT FMVSS-106 requirements
  • Made in the U.S.A.

NOTE: Upper and lower brake line kits are sold separately to allow for a perfect fitment.

NOTE: Non-stock applications require taking a measurement for the upper brake line length and banjo angle to ensure correct fitment (see How to Order below).

NOTE: Harley-Davidson motorcycles equipped with single disc ABS (anti-lock brake system) require ABS specific upper and lower brake line kits. Failure to do so may result in compromised anti-lock braking ability. Magnum Shielding brake line kits manufactured specifically for these applications are identified with the letters "ABS" printed directly on the brake hose

IMPORTANT - HOW TO ORDER:
  • Lower lines are model specific
  • Stock fitments: Use the stock reference chart to determine what upper line length would be stock for your application. Please note: ABS stock lengths are different than non-ABS
  • Stock reference chart: The chart gives you the stock banjo angle used for the master cylinder. You may prefer to use a different banjo angle based on alternate routings or changes to the handlebars


Upper OEM Brake Line Length and Banjo Size/Angle

Fitment: 12-13 FLS, 11-13 FLSTF, 12-13 FLSTFB, 11-13 FLSTN, 11-13 FXS - OEM Length - 30 in. Banjo/Angle - 7/16 in./35°

Fitment: 11-13 FLSTC - OEM Length - 32 in. Banjo/Angle 7/16 in./180°

Fitment: 11 FLSTFB - OEM Length - 26 in. Banjo/Angle 35°

Fitment: 11-13 FXST, 11 FXCW/C - OEM Length - 22 in. Banjo/Angle 7/16 in./35°

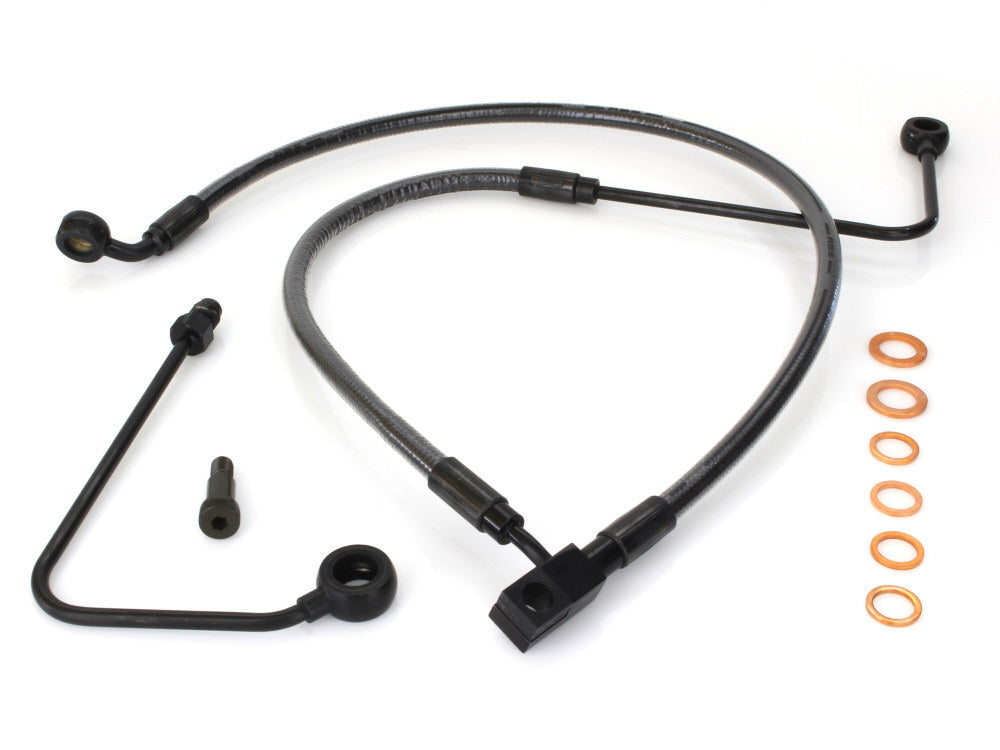

Included Items:
(1) 21 1/2 in. black pearl braided brake line with (1) 3/8 in./10mm 70 degree banjo and (1) junction block with (1) 20 in. brake line with (1) 3/8 in./10mm straight banjo fitting
(1) 7 1/2 in. steel brake line with 7/16 in. 40 degree banjo and (1) AN#3 male fitting
(2) 7/16 in. crush washers
(4) 3/8 in./10mm crush washers
(1) 1/4 in.-20 x 7/8 in. shoulder bolt
No instructions

Specs for Magnum Black Pearl Designer Series ABS Front Lower Brake Line for Softails - AS47003

Finish Black Pearl
Lower Length 20 in.
Lower Length 21 1/2 in.
Overall Length 21 1/2 in.
Position Front Lower
Type Brake Line
Units Each
Weight 0.70 lbs

Alternate/OEM Part Number(s):

17413687

(Part Numbers: ROL-MS-AS47003)
