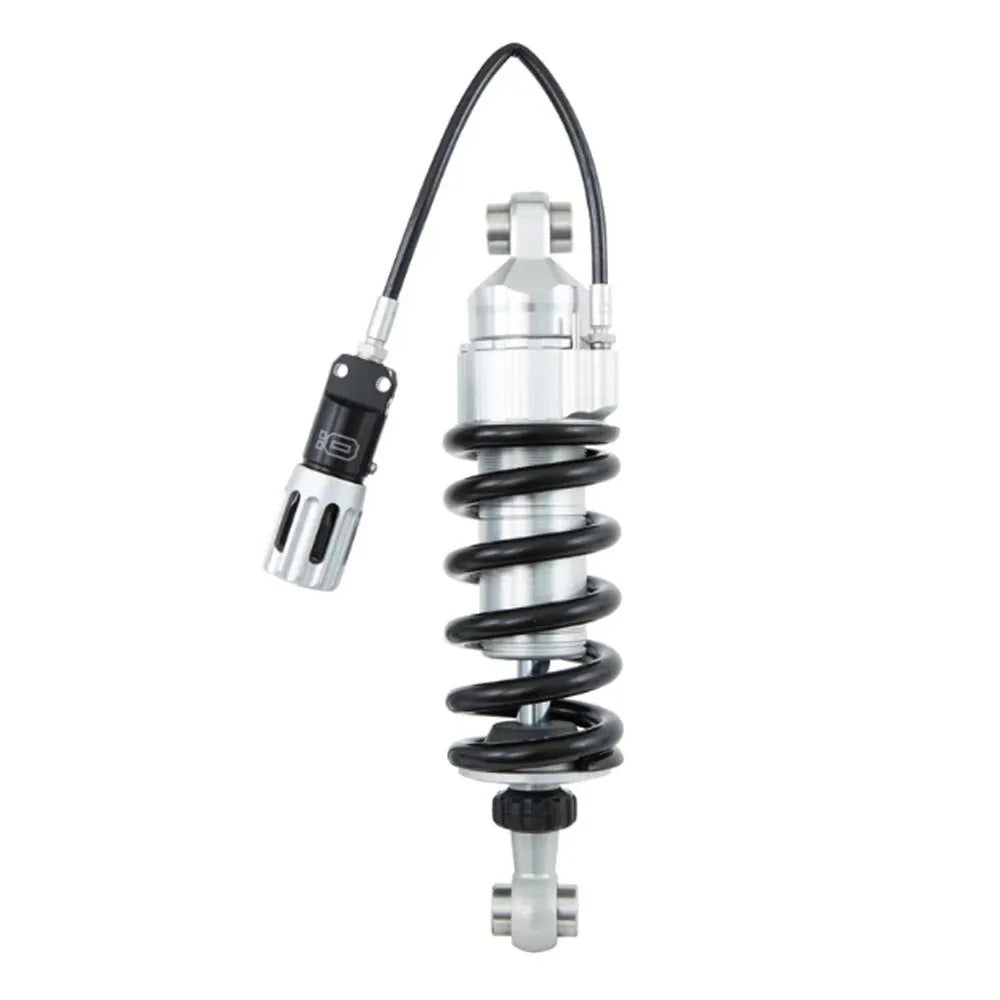

Ohlins HD 515 STX 46 Series Rear Shock Absorber for Harley-Davidson Softail 18-Up Models

The Öhlins STX46 Custom & Heritage shock absorber gives an impressive boost in performance and comfort. With this shock, you'll experience sublime comfort on long cruises—without sacrificing the safety and support you need on winding roads.

DETAILS:

Part number: HD 513

Length: 341.5 mm

Oil: Öhlins 01309

Spring: 21102-36

Spring Rate: 105 N/mm

Stroke: 57.5 mm

Type Code: S46DR1S

S: Single tube

46: Piston diameter: 46 mm

D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body.

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

S: Hose mounted hydraulic spring preload adjuster.
