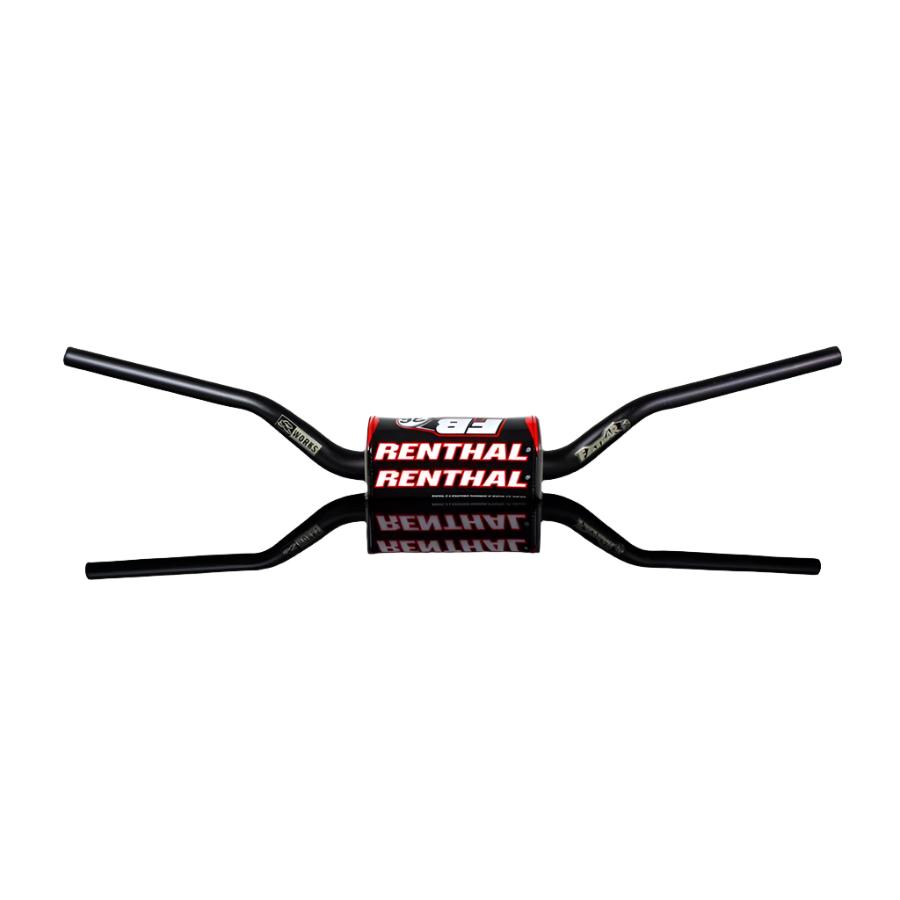

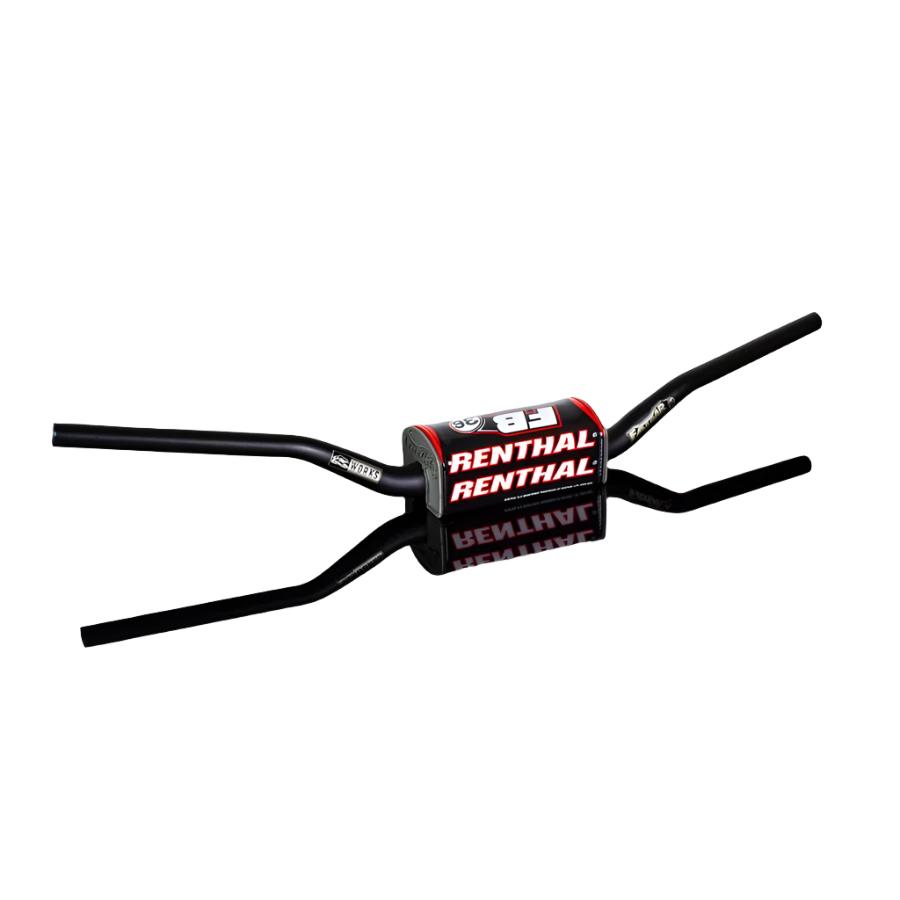

Renthal 93001BK Fatbar36 CR/Honda Bend Handlebar Black

Working alongside our factory race teams, the R-Works Fatbar36 was developed to improve performance through weight reduction without compromising existing handlebar strength. Applying 50+ years of experience in handlebar design, testing and racing, FB36 is the ultimate premium lightweight motocross handlebar.

Utilizing Renthal’s all-new 36mm clamping diameter and proprietary Zarilium® material, this innovative motocross handlebar boasts exceptional vibration reduction qualities while perserving Renthal's signature MX handlebar strength. 36% lighter than our standard 28mm diameter Fatbar®, The R-Works Fatbar36 handlebar is quickly becoming the first choice to riders serious about performance and winning races, as used by Team Honda HRC's Ken Roczen and Chase Sexton to pick up multiple wins in its first year of production.

Lightest
At Renthal we have always strived to produce the strongest, highest quality product we can. Our current handlebar range is at a strength level our factory level teams feels it needs to be but weight saving will always be high on their priority list. We made this our priority as well in developing Fatbar36.

36Tech
36TECH™ is a new handlebar standard developed by Renthal to push forward the boundaries of handlebar technology. The 36mm clamping diameter tapers down to a conventional 22mm control section at each end, using advanced wall geometry, maximising material efficiencies in wall thickness along the entire length of the handlebar to reduce weight.

New Material
Zarilium® is a new aluminium alloy exclusive to Renthal. This new alloy has 20% greater ultimate tensile strength, while maintaining the same elongation properties. This additional strength has allowed Renthal to achieve the maximum weight reduction possible whilst matching the best in class strength of the Renthal® 28mm diameter Fatbar®.

Testing
Renthal is at the forefront of handlebar testing. The only handlebar manufacturer using data acquisition and equipped with it’s own in house test facility. This perfectly positions Renthal to maximise it’s 50+ years of handlebar design, development and championship winning race experience. The result is the best performing handlebars with unrivaled quality.

Manufacturing
As the globally leader in handlebar technology we pride ourselves, not only on our engineering abilities, but also our state-of-the-art manufacturing facility. Taking raw Zarilium tube we put it through a host of operations to turn it into Fatbar36.

R-Works
The R-Works® badge represents uncompromising performance. It means we have selected the ultimate materials and manufacturing processes at our disposal to bring you the very best performance product we can. A fraction of a second. A few grams. A couple of millimetres. It all counts.

Bar Dimensions
Width: 804
Height: 101
Rise: 60
Clamping Width: 130
Sweep: 54
Control Length: 197
Dim: 115
Mounting Diameter: 36mm
