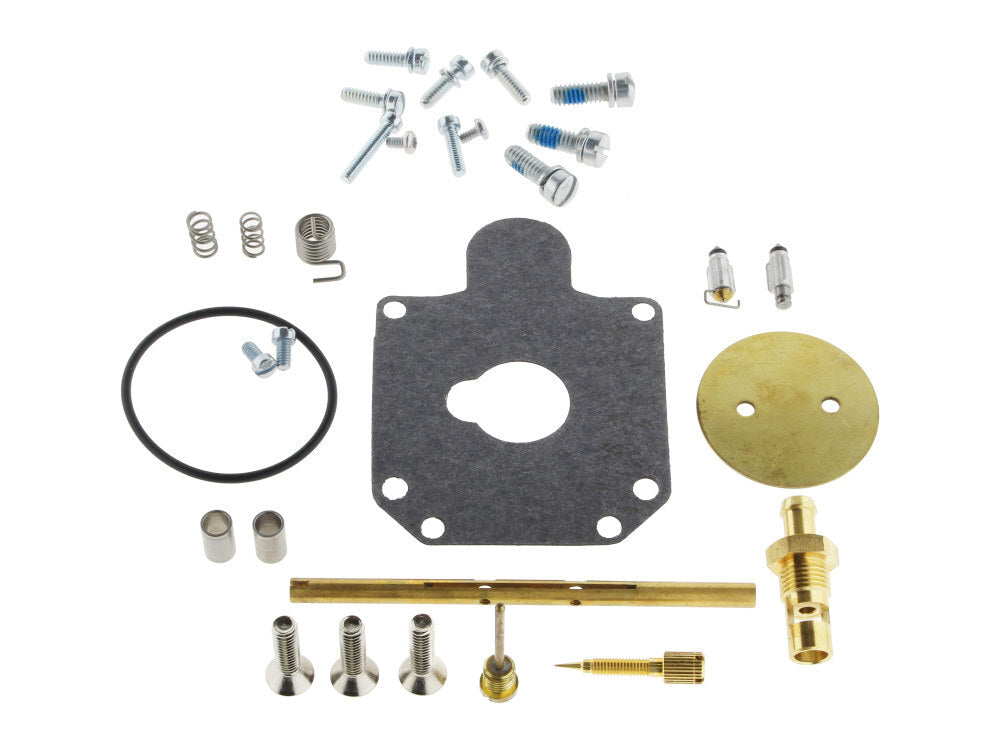

S&S Cycle SS11-2914 Carburettor Master Rebuild Kit for S&S Super B Carburettors

• Kit includes body, accelerator pump, fasteners, springs, idle mixture screw, seat and needle assembly

• Super B carbs

• Sold one kit per carburetor

NOTE:

Early Series #94 gas jets were stamped with single digit numbers. Conversions for these numbers are:

• 1 .025"

• 2 .028"

• 3 .031"

• 4 .033"

• 5 .036"

• 6 .040"

(1) Bowl gasket

(1) O-ring

(1) Throttle plate

(1) Throttle shaft

(1) Throttle return spring

(2) Bushings

(2) #6-32 X 1/4" Pan head bolts

(2) #8-32 X 1/4" Pan head bolts

(1) #8-32 X 5/8" Pan head bolt

(1) #8-32 X 7/8" Pan head bolt

(4) #10-24 X 1/2" Pan head bolts

(4) #10 Split lock washers

(3) 1/4"-20 X 3/4" Stainless steel countersunk phillips head bolts

(3) 1/4"-20 X 3/4" Pan head bolts

(3) 1/4" Split lock washers

(2) Springs

(1) Idle mixture screw

(1) Wire float needle

(1) Button float needle

(1) Racing needle seat

(1) Float pin

Instructions
