S&S Cycle  |  SKU: ROL-SS330-0017

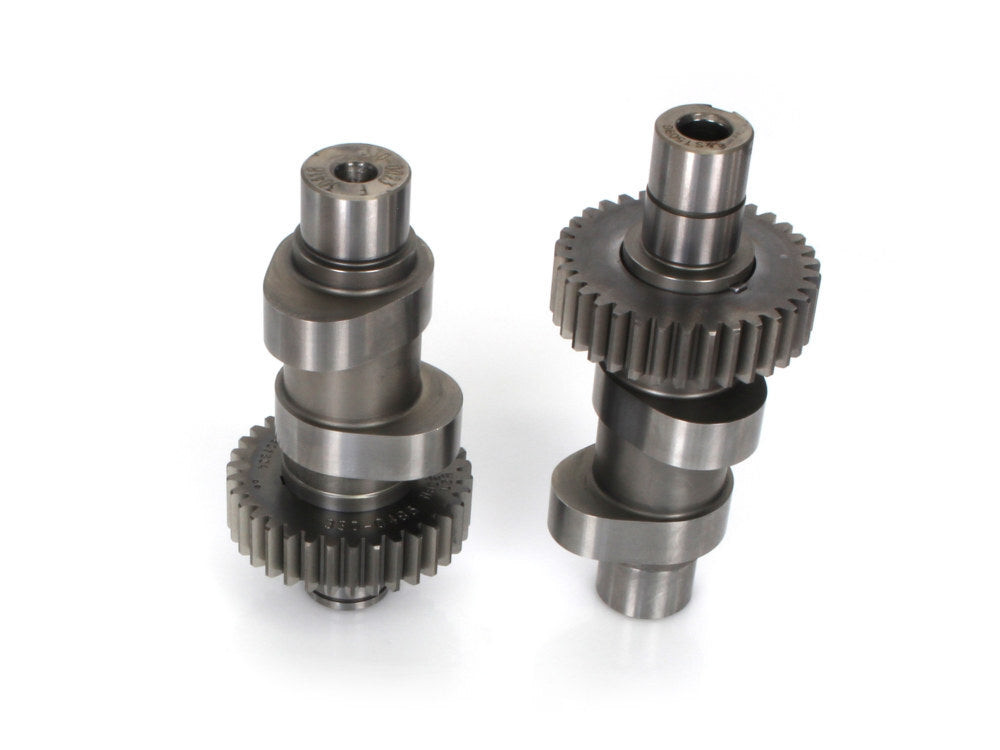

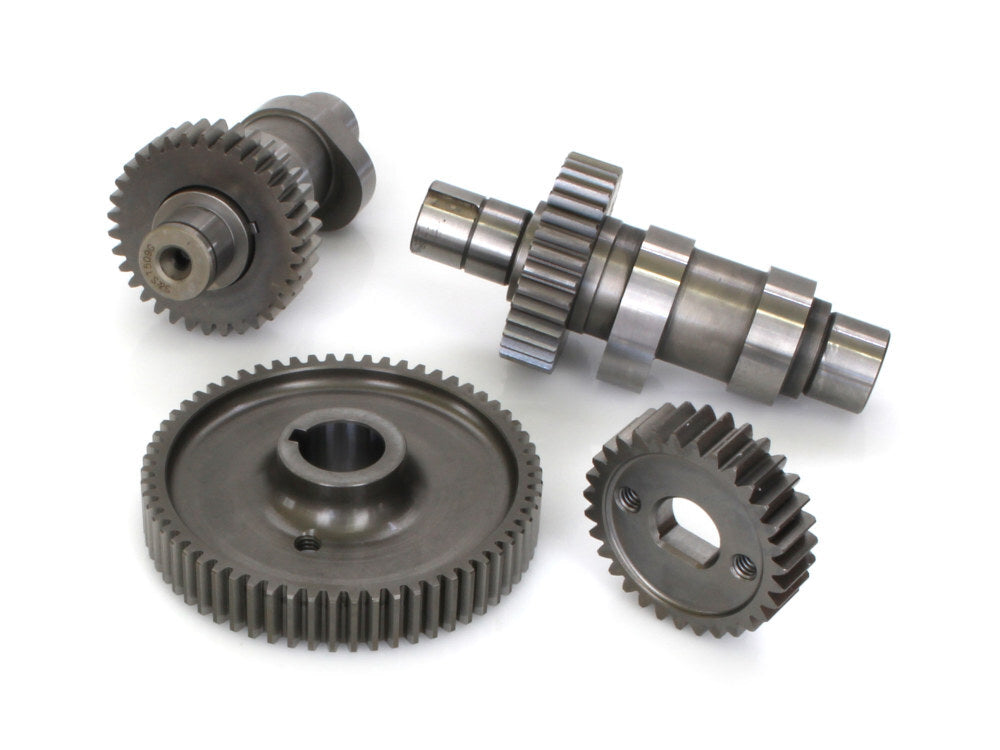

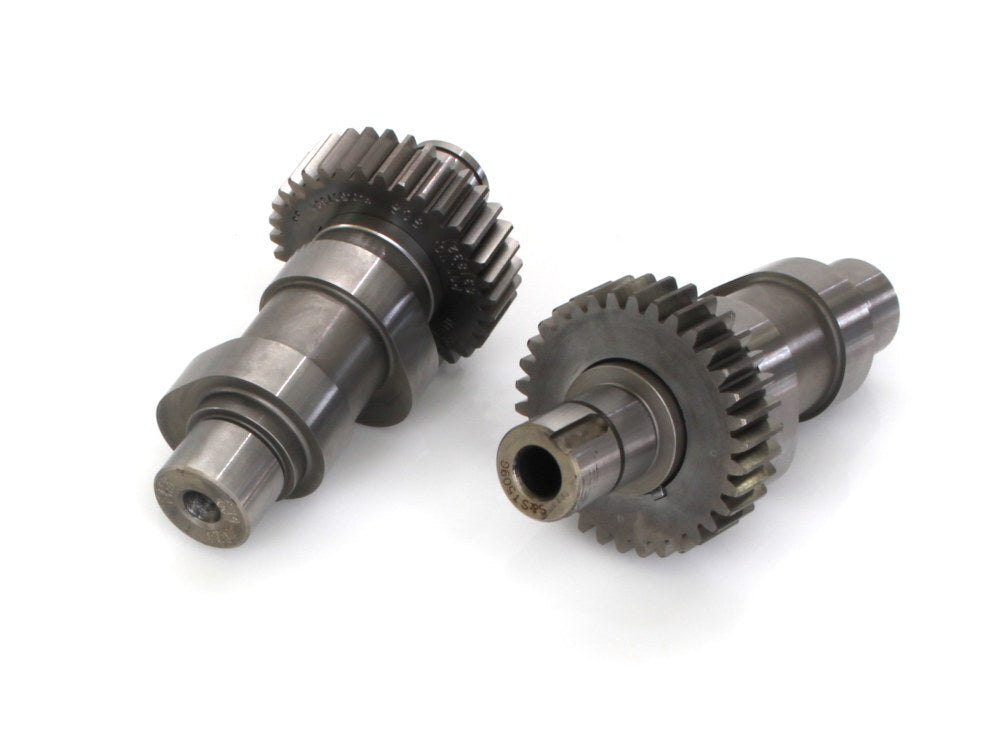

S&S Cycle SS330-0017 509G Gear Drive Camshaft Kit for Twin Cam 99-06

Only 2 Left

Online Only

Ready For Delivery

$1,647.00

Description for S&S Cycle Complete Gear Drive 509G Camshaft Kit

• The S&S Camshaft Gear Drive Kit increases valve timing accuracy in 1999-2006 Twin Cam 88 engines by eliminating timing chain lash and the loosely fit stock cam gears

• This is accomplished by replacing the stock cam drive sprockets and chain with light press fit S&S gears

• Because the chain, chain guides, and tensioner are eliminated, there is no longer a possibility for these parts to fail and damage other parts

• The S&S Camshaft Gear Drive Kit reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes

• As a result, higher cam lifts are possible with the gear drive kit

• Bolt in Camshaft set for 1999-06 Twin Cam, 180 psi cranking compression, no need for compression releases

• RPM range from idle to 4500

• Great bolt in torque

Product Details

Features & Benefits:-

* Eliminates Timing Chain Lash & Improves Valve Timing Accuracy.

* No Tensioner Shoes to wear Out or Fail.

* Reduces Drag on engine & adds Horsepower.

* Designed for 88ci & 95ci Engines with Stock Compression & Stock Heads.

* High Torque Cam for low to mid rpm range, best results idle-4500.

* Designed as a Bolt-in, but should always be validated by the Assembling Technician.

Tech Tip:-

* Will Not Fit Dyna 2006.

* Check Crankshaft run-out using Jim’s Tool # JM-785

* S&S Crankshafts are available where run-out exceeds Specification.

Proudly Made in the USA by S&S Cycle !



Product Specs for S&S Cycle Complete Gear Drive 509G Camshaft Kit



Centerline Exhaust: 107.5°
Centerline Intake: 90°
Duration Exhaust @ .053: 237°
Duration Intake @ .053: 216°
Grind: 509G
Lift: .509
Lift @ Top Dead Center Exhaust: .140"
Lift @ Top Dead Center Intake: .174"
Manufacturer Part Number: 330-0017
Sold in Units: Kit
Warehouse Part Number: SS330-0017



(Part Numbers: ROL-SS330-0017)
