S&S Cycle  |  SKU: ROL-SS330-0106

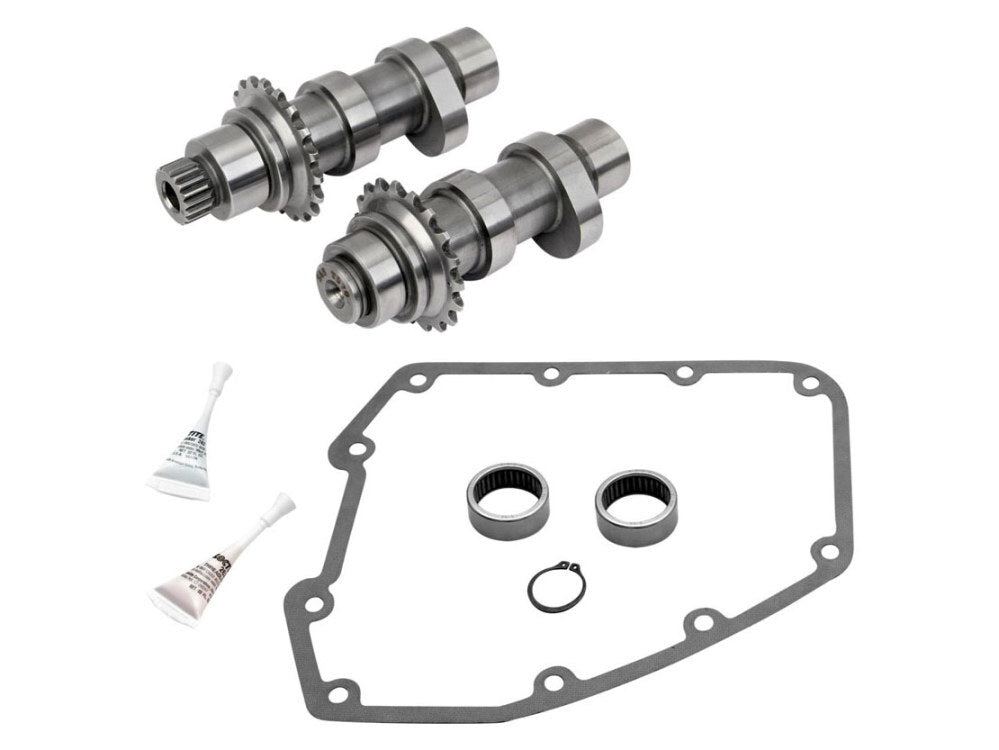

S&S Cycle SS330-0106 583C Chain Drive Camshaft Kit for Twin Cam 07-17/Dyna 2006

In Stock

Online Only

Ready For Delivery

$695.00

Description for S&S Cycle 583C Chain Drive Cam Kit - 330-0106

• Camshaft gear drive kits increase valve timing accuracy by eliminating timing chain lash and loosely fit stock chain drive

• Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes; as a result, higher cam lifts are possible with the gear drive kit

• Kits include cams, inner gears, outer drive gears, inner and outer bearings, gasket and instructions

• Material must be removed from the inner surface of the stock gear cover to install S&S gear drive cams

• A hydraulic press and other professional-level tools are required to install these kits

• S&S recommends that adjustable pushrod/cover kit PART #14-9988 can be used

• Cam bearings and gaskets must be replaced when installing new cams

• Cams are also available with inner gears only; intended for cam replacement for motors that have already been converted to an S&S gear-drive system

• Great overall cam for Softail and Dyna

• Provides strong low-end torque and horsepower

• Strongest from 1500-5000 rpm



NOTE: Kits require high-performance valve springs (except 509G and 510G) when installed in 99-04 models.

NOTE: Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.

NOTE: Due to the inherent characteristics of gear drives, you may experience more valve train noise


Included Items:

(1) Front chain drive

(1) Rear chain drive

(1) 0.017 fl. oz. Locktite 243

(1) .02 fl. oz. Locktite 262

(2) 26 x 32 x 13 Bearing

(3) O-rings

(1) Cam shaft gasket

(1) Snap ring

Instructions



The Air Resources Board (ARB) does not permit the use of aftermarket emission-related parts that alter the air/fuel ratio of an emission-controlled vehicle. Due to these legal restrictions this part cannot be shipped to California.



Product Specs for S&S Cycle 583C Chain Drive Cam Kit - 330-0106



Part #: SS330-0106
Mfg #: 330-0106
Units Each
Weight 4.05 lbs

(Part Numbers: ROL-SS330-0106)
