Sena SRL-EXT Bluetooth Intercom (Single Unit) for Shoei NXR2 Helmets

Communication by SENA, protection by SHOEI, and SOUND BY Harman Kardon. The SRL-EXT was custom‑designed for one of SHOEI’s customer favorite helmets. The SRL-EXT is compatible with three regional SHOEI helmets; the RF-1400 for North America, the NXR2 for Europe, and the Z-8 for the Asia-Pacific market. The compact SRL-EXT offers both Mesh and Bluetooth intercom plus smartphone connectivity for music, GPS, phone calls, and more. SRL-EXT users will experience premium SOUND BY Harman Kardon audio inside of their SHOEI helmet.

MESH & SOUND BY Harman Kardon DESIGNED FOR SHOEI HELMETS

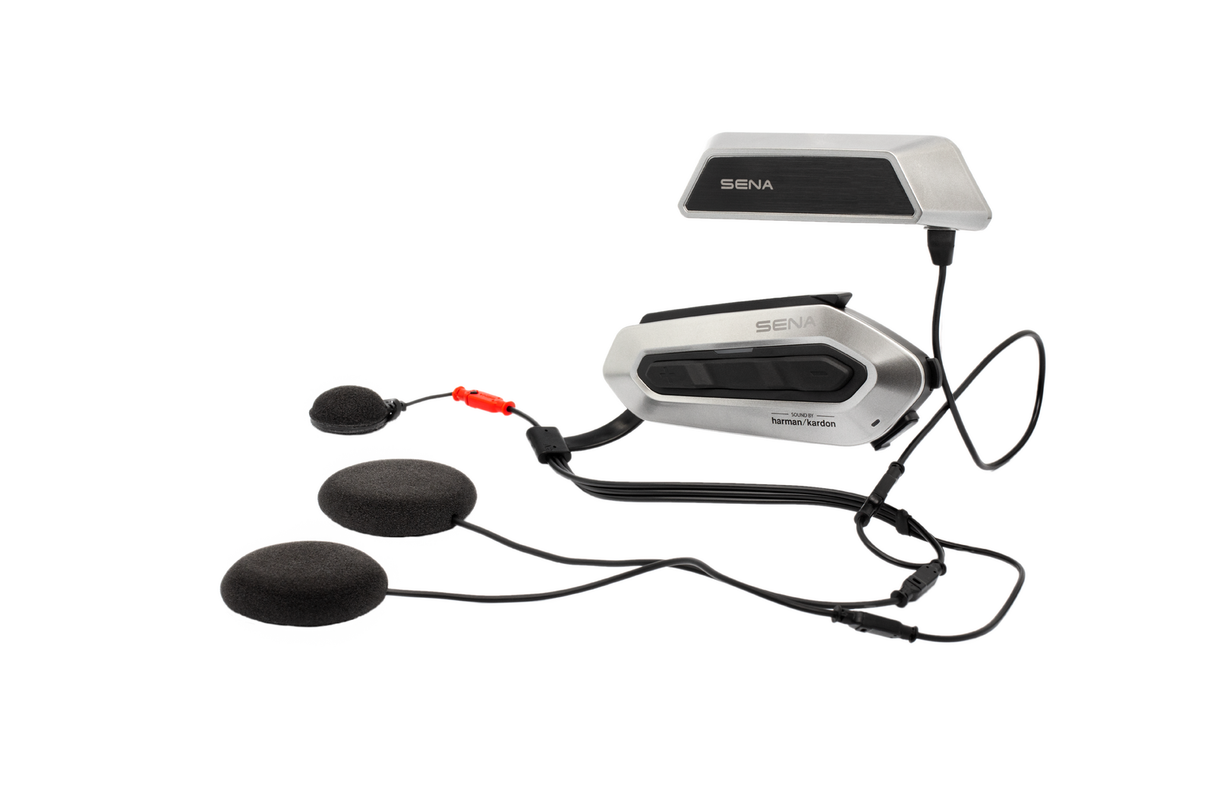

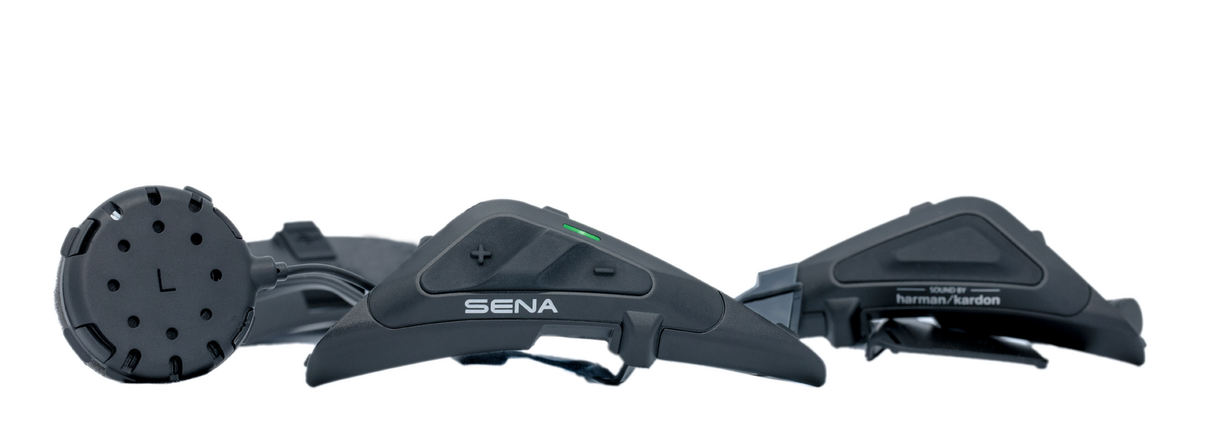

The SRL-EXT was tailored specifically for the SHOEI RF‑1400, NXR2, and Z-8 helmets. The shape of the SRL-EXT main module and external battery are curved to match the exterior curves of the helmet. The SRL‑EXT main module is installed on the left side of the helmet, while the external battery adheres to the right side of the helmet.

HANDS FREE CONVENIENCE WITH SENA’S VOICE COMMANDS
Convenient voice commands allow you to control the SRL-EXT’s system functions, such as answering the phone or starting up a Group Mesh session. The SRL-EXT supports voice commands in eight languages: English, French, German, Spanish, Italian, Chinese, Japanese, and Russian!

Looking for a bite to eat? “Hey Google, directions to the nearest sandwich shop.” The SRL-EXT easily connects to Google Assistant and Apple’s Siri with a simple voice command allowing you to tap into the power of your smartphone’s features, including GPS navigation, music playback, voice dialing, plus a variety of other digital assistant features.

MESH & BLUETOOTH® INTERCOM
The SRL-EXT offers both Mesh Intercom™ and traditional 4-way Bluetooth® intercom, allowing for compatibility with any Sena or Sena-powered device. Sena’s industry-leading Mesh Intercom™ communication platform has two modes: Multi-Channel Open Mesh Intercom™ (Open Mesh) and Group Mesh Intercom™.

Open Mesh offers a single push of a button to click-to-connect to the Mesh Intercom™ network and features the industry’s first Mesh Intercom™ channel system. Like standard handheld or CB radios, Open Mesh lets users switch between 6 channels. It also supports a near-limitless number of users within a range of up to 5 miles / 8 km (min. 6 riders @ 1 mi / 1.6 km intervals).

Group Mesh supports a single, private group for up to 24 participants and the same range as Open Mesh for a more intimate group conversation. Only invited users can join the Group Mesh chat. Open Mesh and Group Mesh provide unprecedented intercom audio quality and robust connectivity.

SOUND BY Harman Kardon
The SRL-EXT’s speakers and microphone were created with the audio experts at Harman Kardon to provide world-class sound inside your SHOEI helmet. Expertly crafted speakers and an all-new microphone allow the SRL-EXT to deliver an unmatched audio experience. The speakers send clear audio to riders’ ears while the microphone, with a redesigned sensor, provides robust performance for voice communication. Users will be able to switch between the wired boom microphone and the wired microphone. Experience SOUND BY Harman Kardon inside of your SHOEI helmet with the SRL-EXT.

READY FOR ADVENTURE WITH SENA APP
Customize a variety of settings on your Sena device with the Sena Motorcycles App. Configure channel settings for Open Mesh or set a private group for Group Mesh. Explore all-new soundscapes with the EQ presets and give the audio a boost. Connect your Sena headset to your phone in the Bluetooth settings menu and get the most out of your adventures.

SPECIFICATIONS

GENERAL
Dimensions:
• Main Module: 108 mm x 44 mm x 20 mm (4.3 in x 1.7 in x 0.8 in)
• Speaker Driver Unit: 40 mm—thickness 7.3 mm
• Boom Microphone: length 60 mm
• Wire Between Speakers: length 360 mm

Weight:
• Main Module: 48 g (1.69 oz)

Operating Temperature: -10 °C – 50 °C (14 °F – 122 °F)

MESH NETWORK
Mesh Intercom 3.0

BLUETOOTH
Bluetooth 5.0
Headset Profile (HSP)
Hands-Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Audio Video Remote Control Profile (AVRCP)

INTERCOM
Working Distance:
• Bluetooth Intercom: up to 2 km (1.2 miles) in open terrain
• Mesh Intercom™: up to 2 km (1.2 miles)* in open terrain
*Can extend up to 8 km (5 miles) between a minimum of 6 riders

Supports up to:
• Bluetooth Intercom: 4 riders
• Open Mesh Intercom: virtually limitless
• Group Mesh Intercom: 24 riders

Supports Channels:
• Open Mesh Intercom: 6 channels

FM RADIO
Radio frequency specifications: 76 – 108 MHz
10 preset station memory

AUDIO
Noise Cancellation: Advanced Noise Control™
Codec: Built-in SBC Codec
Premium Speakers & Microphone with SOUND BY Harman Kardon

BATTERY
Talk Time:
• Bluetooth Intercom: 16 hours
• Mesh Intercom™: 12 hours

Charging Time: 2.5 hours
Type: Lithium Polymer Battery

CERTIFICATES
CE, FCC, IC

WARRANTY
3-Year Warranty
