SW-Motech SW-ADV1174875001-S TRAX ADV Silver Adventure Luggage Set for Triumph Tiger 800 10-Up

This set is the all-round, care-free pack for any tour. The water and dust-tight TRAX ADV premium aluminium case, two side cases and a top case offer your luggage the best protection. The bike-specific development of the detachable PRO side carrier and the ADVENTURE-RACK guarantee an optimal fit and secure grip for aluminium cases.

Our sturdy TRAX ADV aluminium cases convince with their stability, impermeability to water and dust, elegant optics, well-thought out features and a large selection of accessories. For even more storage, this adventure set contains two TRAX M/L expansion bags. These are fastened to the side cases, are water-tight and the contents can be especially quickly accessed.

What's in the Set

• 1 × TRAX ADV M Aluminium case, 37 L, silver, right
• 1 × TRAX ADV L Aluminium case, 45 L, silver, left
• 1 × TRAX ADV Top case, 38 L, silver
• 2 × PRO Side carrier
• 2 × Adapter kit for PRO side carrier
• 2 × Anti-theft protection for PRO side carriers
• 1 × ADVENTURE-RACK
• 1 × Adapter kit for ADVENTURE-RACK
• 3 × TRAX lock set
• 2 × TRAX WP M/L accessory bag
• 6 × Lid limiter
• 3 × Storage bag
• 1 × Multi-tool key chain attachment
• Mounting instructions
• Mounting hardware

Specifications

Set Components

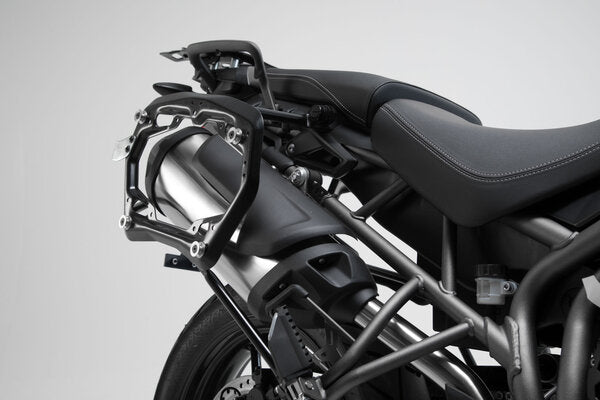

PRO Side Carrier

• Extremely durable due to its optimised shape and 2.5 mm thick steel
• Perfect fit, designed to fit close to the bike
• Fully removable with newly developed, even more robust quick-release fasteners
• Optional anti-theft protection available
• For permanent mounting, quick-release fasteners can be replaced with standard parts (M8)
• Numerous functional bores, compatible with the RotopaX system among others
• Simple mounting on original mounting points
• Powerful corrosion protection thanks to powder coating
• Secure hold for TRAX, AERO and SysBags with adapter plate (SysBag 15, 30, WP L)
• Adapter kits for attaching cases from Givi/Kappa, Krauser and Shad are also available

Material: Steel · Finish: Powder coated · Colour: Black · Weight: Approx. 5 kg · Width (Fitted): 52 cm

Please Note: Adapter kits are required for aluminium cases from SW-MOTECH and other manufacturers and also for AERO ABS side cases and SysBags with adapter plates (SysBag 15, 30, WP L).

Adapter Kit for PRO Side Carrier

• Adapter kit for attaching a TRAX or NANUK side case to an SW-MOTECH PRO side carrier
• Mounted on to the existing holes of the SW-MOTECH PRO side carrier
• For left and right sides

Colour: Silver · Weight: Approx. 0.3 kg

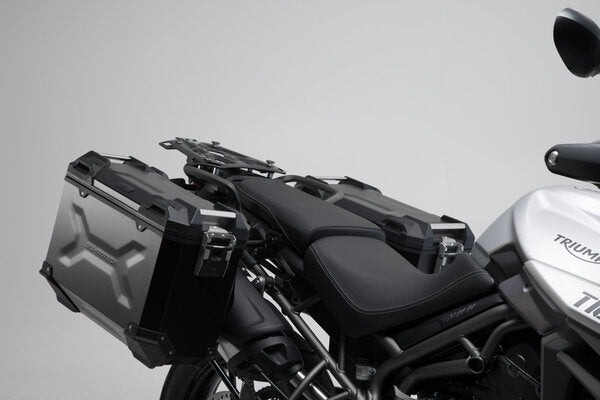

TRAX ADV L Aluminium Case

• Model for the left side of the motorcycle
• Protection against oxidation and abrasion thanks to anodised finish
• Sturdy and watertight side case made from aluminium
• Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fibre reinforced plastic corner caps
• Robot-guided welding and self-piercing riveting prevent dampness from getting in
• Even when loaded, completely removable lid with quick-release fastener
• 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
• High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
• Hinges made from stainless steel, handles made from anodised aluminium
• Lid limiters provide additional stability when using extra luggage on the lid
• Exchangeable cover gasket
• The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
• Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
• Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
• A lock set with 6 identical locks is available as an option and is not included in delivery

Material: Aluminium · Material Thickness: 0.15 cm · Finish: Anodised · Colour: Silver · Size: 49 × 28 × 37 cm · Weight: Approx. 5.4 kg · Volume: 45 L

Please Note: Also available as a TRAX ADV aluminium case system with 2 side cases, bike-specific side carriers, adapters and lock set.

Required for Fitting: Side carrier, adapter kit, TRAX lock set

TRAX ADV M Aluminium Case

• Model for the right side of the motorcycle
• Protection against oxidation and abrasion thanks to anodised finish
• Sturdy and watertight side case made from aluminium
• Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fibre reinforced plastic corner caps
• Robot-guided welding and self-piercing riveting prevent dampness from getting in
• Even when loaded, completely removable lid with quick-release fastener
• 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
• High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
• Hinges made from stainless steel, handles made from anodised aluminium
• Lid limiters provide additional stability when using extra luggage on the lid
• Exchangeable cover gasket
• The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
• Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
• Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
• A lock set with 6 identical locks is available as an option and is not included in delivery

Material: Aluminium · Finish: Anodised · Colour: Silver · Size: 49 × 23 × 37 cm · Weight: Approx. 5.1 kg · Volume: 37 L

Please Note: Also available as a TRAX ADV aluminium case system with 2 side cases, bike-specific side carriers, adapters and lock set.

Required for Fitting: Side carrier, adapter kit, TRAX lock set

TRAX Lock Set with PRO Anti-theft Protection

• 9 matching locks
• With anti-theft protection for PRO side carrier
• Compatible with side cases and top cases from the TRAX ADV and TRAX ION series
• One key for all locks

Colour: Black · Weight: Approx. 0.5 kg

Multi-tool Key Chain Attachment

• Multitool as practical key chain
• Quick-release fastener opener for EVO and PRO side carriers
• Hex key (14 mm) - ideal for many motorcycle mirrors
• Hex keys in four additional sizes (8, 10, 12, 13 mm)
• Bottle opener
• Key chain eyelet
• With laser-etched SW-MOTECH logo

Material: Stainless steel · Finish: Brushed · Colour: Silver

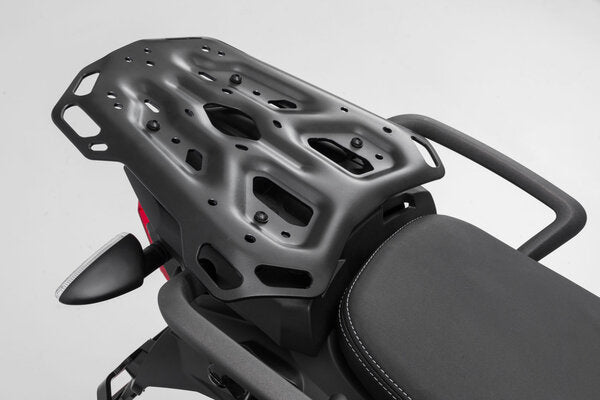

ADVENTURE-RACK

• Extremely robust rack for long tours and off-road rides
• Exclusive manufacturing processes and its optimised shape lend an extra dose of stability to the ADVENTURE-RACK
• Its extreme durability during vibrations, impacts and high weight was tested in the lab and off-road under harshest conditions
• Multiple functional bores: for TRAX top cases. SysBag with adapter plate are available separately with the appropriate adapter kit
• Adapter kits for attaching top cases by other manufacturers (Givi Monokey and Monolock, Krauser, Shad I and II) also available
• Easy rigging of luggage on numerous, large lashing eyes, threading of 25 mm fasteners possible
• Especially large contact surface (Width: 32.9 cm at the front, 22.5 cm at the back, Length: 30.3 cm)
• Easy installation on original attachment points with bike-specific attachment elements
• Effective corrosion protection from black powder coating
• Made of light but sturdy 4mm-thick aluminium alloy

Material: Aluminium · Material Thickness: 0.40 cm · Finish: Powder coated · Colour: Black · Weight: Approx. 1.4 kg

Adapter Kit for ADVENTURE-RACK

• Adapter kit for attaching a TRAX top case onto an ADVENTURE-RACK
• Compatible with TRAX ADV, TRAX ION and TRAX EVO top cases by SW-MOTECH
• Easy mounting: the adapter kit is screwed onto the rack

Material: Polyamide / Stainless steel · Colour: Black / Silver · Weight: Approx. 0.2 kg

Please Note: The adapter kits for Sysbag 15/30 are already included in delivery together with the rear panel-mounted adapter plates.

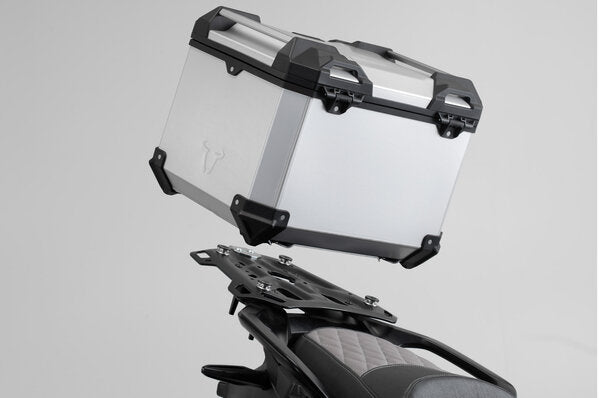

TRAX ADV Top Case

• Protection against oxidation and abrasion thanks to anodised finish
• Premium top case made from 1.5 mm-thick aluminium
• Hinged lid with lid limiter, stainless steel latch, sturdy carrying handles and integrated mounting points
• 100% water- and dustproof due to robotic welding and punch rivet technology
• Theft protection: Case lid and case can be locked when on the carrier
• High stability thanks to the visually appealing and functional embossed sheet metal
• Additional protection from corners made of glassfiber-reinforced polyamide
• Easy to clean surface
• A lock set with 2 identical locks is available as an option and included in delivery when purchasing a TRAX ADV top case system

Material: Aluminium · Material Thickness: 0.15 cm · Finish: Anodised · Colour: Silver · Size: 41 × 34 × 33 cm · Weight: Approx. 4.8 kg · Volume: 38 L

Please Note: Also available as a TRAX ADV top case system with ADVENTURE-RACK, adapters and lock set.

TRAX WP M/L Accessory Bag

• Waterproof accessory bag that can be lashed onto side cases
• For side cases from SW-MOTECH and other brands (such as BMW, for ex.)
• 15 litres of additional storage, padded
• Circumferential, waterproof zipper enables quick access to the entire contents
• Overlapping lid is secured using plastic clips
• Divider for custom organisation of the interior
• Made of robust, easy to clean material
• Sleek design with reflective details
• Sturdy carrying handle
• 8 D-rings offer flexible lashing options (spacing of the inner D-rings: approx. 24 cm, spacing of the outer D-rings: approx. 32 cm)

Material: 500D Polyester · Colour: Black · Size: 45 × 15 × 22 cm · Weight: Approx. 1.3 kg · Volume: 15 L

Please Note: The TRAX WP M/L accessory bag fits perfectly on the TRAX ADV and TRAX ION side cases from SW-MOTECH.
