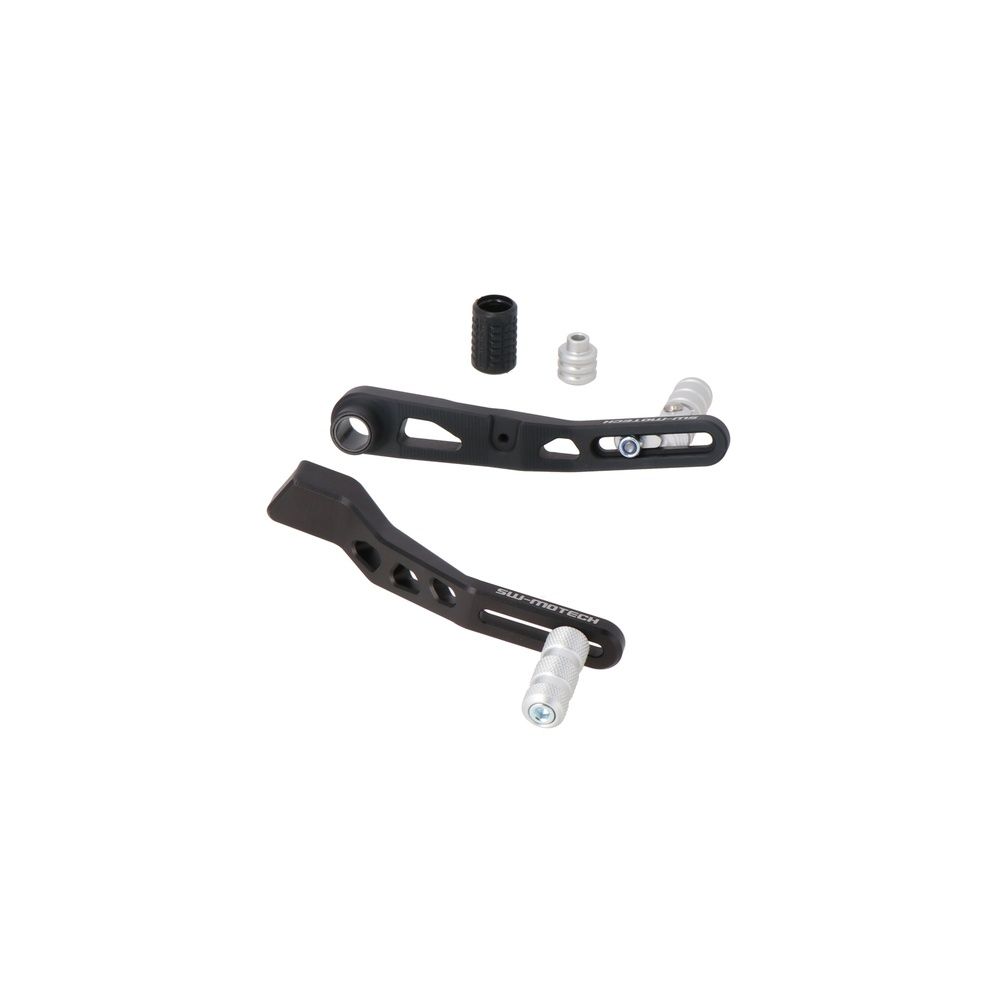

SW-Motech SW-FBL0107020001 Gear Lever & Brake Pedal Set for Honda XL750 Transalp 22-Up

Gear lever and foot brake lever set
This ergonomic lever set made of high-quality aluminium was specially developed for the Honda XL750 Transalp and features an adjustable gear lever and a brake pedal.

Both foot levers are anodized with HART-COAT® to protect against scratching and are tested for precision fit and functionality. This shift and brake set not only looks great on your bike, but they also allow you to fully customize your exact foot position for optimum control while shifting, braking, sitting or standing—no matter what kind of boot you're wearing.

Brake pedal
• Bike-specific aluminum lever arm
• Robust construction, perfect fit: CNC-milled, HART-COAT® coated aluminum
• Better ergonomics and safe operation of the brake pedal
• High-quality milled tread for maximum stability
• Knurling increases grip and prevents slipping
• Platform features various adjustable positions
• Tread STREET included by default in delivery
• Adventure tread for off-road touring (sold separately)
• TÜV certificate and national type approval available

Details
• Material: Aluminum
• Color: black
• Total Weight: appr. 0,4 kg / appr. 1.0 lb

Note
• Professional installation highly recommended

Gear lever
• Two-part gear lever with continuously adjustable unit
• Distance between toe peg and bore on original gear lever: 95 mm
• Adjustment range of distance between toe peg and bore on SW-MOTECH gear lever: 67 - 122 mm
• The tread can also be mounted at a 180° angle.
• Better ergonomics and safe operation of the gear lever
• A spring mechanism enables it to be folded down and protects it from breaking in case of a crash
• Robust and elegant: CNC-milled, HART-COAT® coated aluminum
• Mounting of an extension for gear lever for expanding the tread surface possible
• General Operating License not required for German traffic

Details
• Material: Aluminum / Aluminum
• Surface: anodized
• Color: black / silver
• Total Weight: appr. 0,1 kg / appr. 0.3 lb

Warning
• In the event of an accident, the folding mechanism of the gear lever is only guaranteed when the gear lever is set in the standard position facing forward.

Details
• Material: Aluminum
• Color: black
• Total Weight: appr. 0,8 kg / appr. 1.9 lb

Included in delivery
• 1 x Brake pedal
• 1 x Gear lever
• Mounting instructions
• Mounting material
